UHF band, Phase Lock Loop (PLL) offering stable RF transmission
-
Preset frequency groups plus a user definable frequency group allows users to tune the operating frequency of each channel
-
OLED display offers a wide viewing angle while remaining bright in darkened conditions
-
Frequency, Channel, RF and AF signal strength meters
-
Combined use jog wheel button operation for fast menu navigation
-
1U rack metal housing with integrated brackets include antenna cable interface for front-mount antenna
-
Integrated antenna splitter for reduced RF interference
-

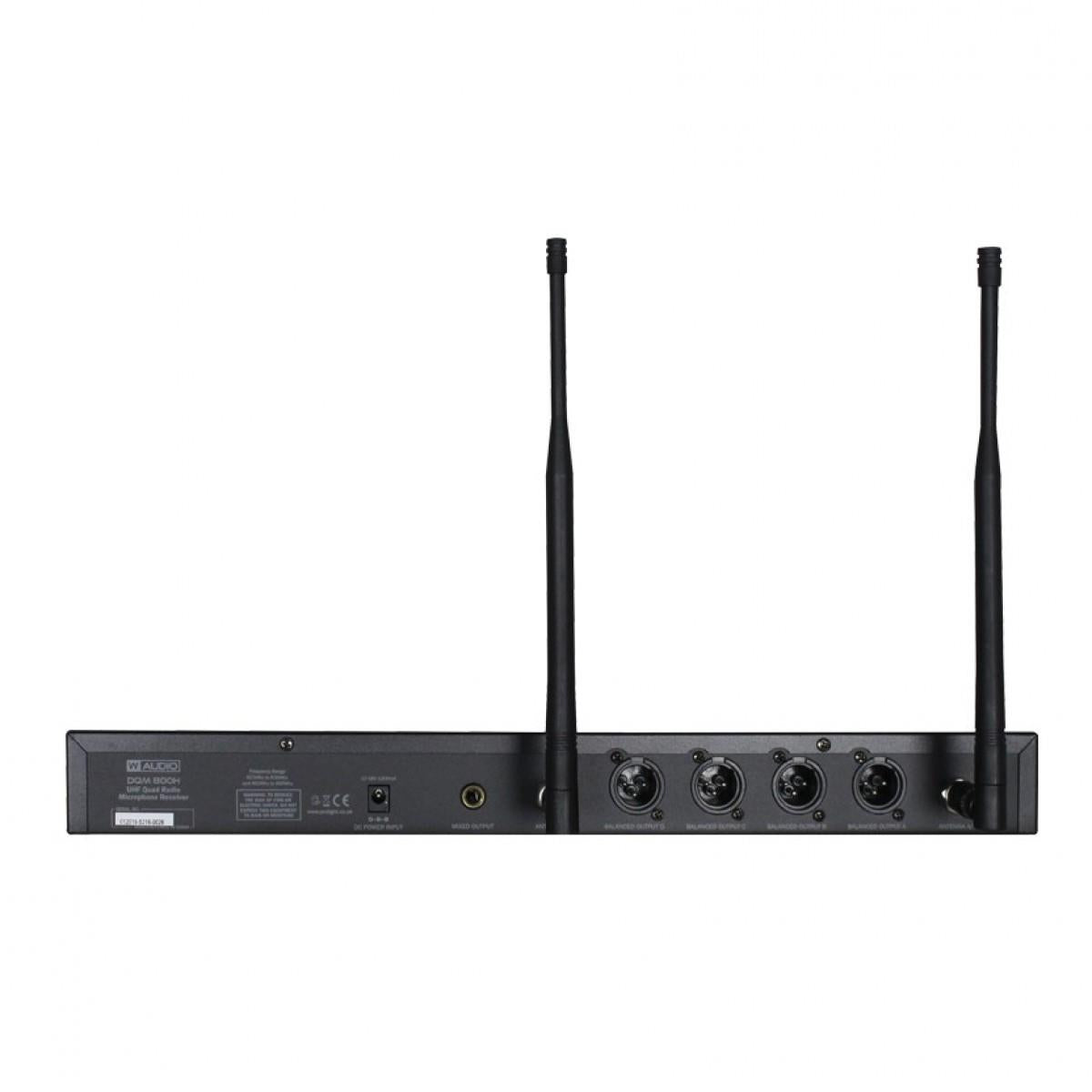

Balanced XLR output for each channel plus unbalanced mixed output
-
Automatic frequency SCAN function
- IR infrared frequency synchronisation via infrared interface
-
Mute circuitry for reduced noise
-
Flat frequency response: 50Hz-16KHz
-

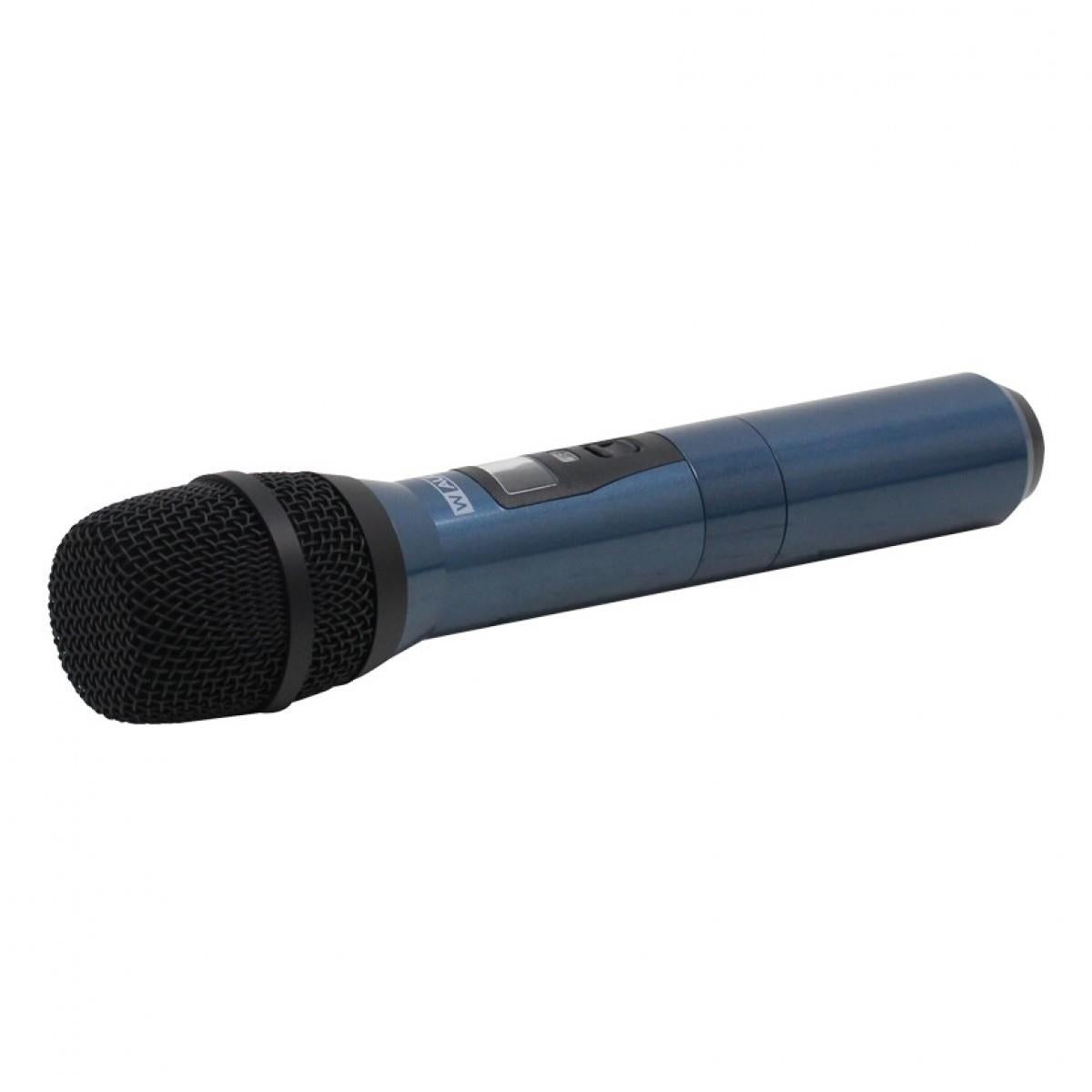

Dynamic, cardioid handheld microphone capsule
-

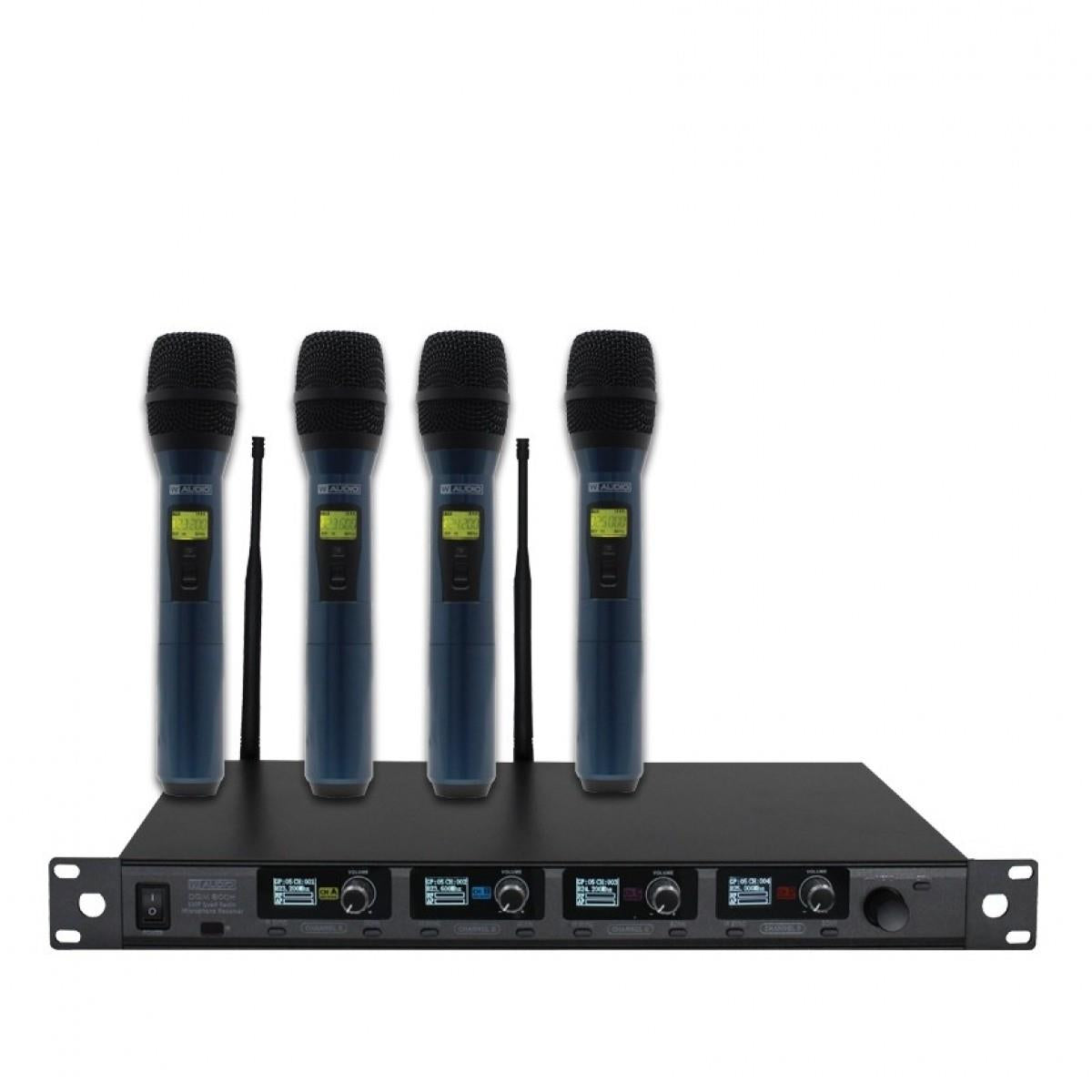

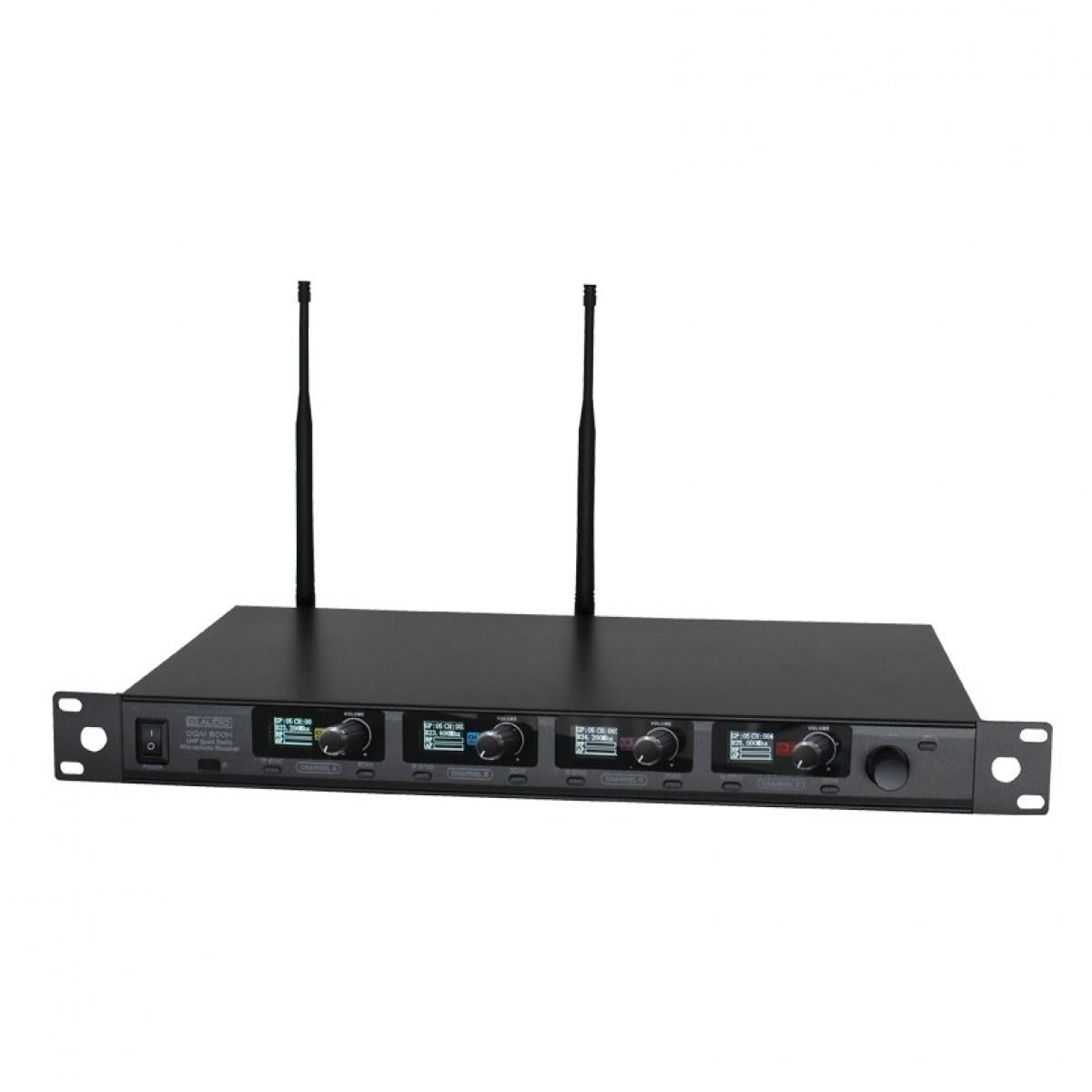

1U full-width rackmount receiver
-
Up to 16 DQM transmitters can be used simultaneously when configured manually
-
Audio output level 400mV
- Dynamic Range 96dB
Specifications:
- Receiver: Power supply: 14V DC (mains adaptor supplied)
- Handheld Transmitter: Battery configuration: 2 x 1.5V AA (not supplied)
Dimensions:
- Receiver:45 x 482 x 215 mm
- Handheld Transmitter: 250 x 45 x 45 mm
Weight:
- Receiver: 2.0 kg
- Transmitter: 0.4kg
