MSI Z270 Gaming M5 Motherboard
MSI Z270 Gaming M5 Motherboard
MSI Z270 Gaming M5 Motherboard
MSI Z270 Gaming M5 Motherboard
MSI Z270 Gaming M5 Motherboard
MSI Z270 Gaming M5 Motherboard

MSI Z270 Gaming M5 Motherboard

SKU: MAGZ490-C20-BK

Item Condition: Used

£139.00
£139.00
Subtotal: £139.00
Ask An Expert

FREE DELIVERY

Order before 4pm for Next Working Day UK delivery
Trulli
Description
Description
x

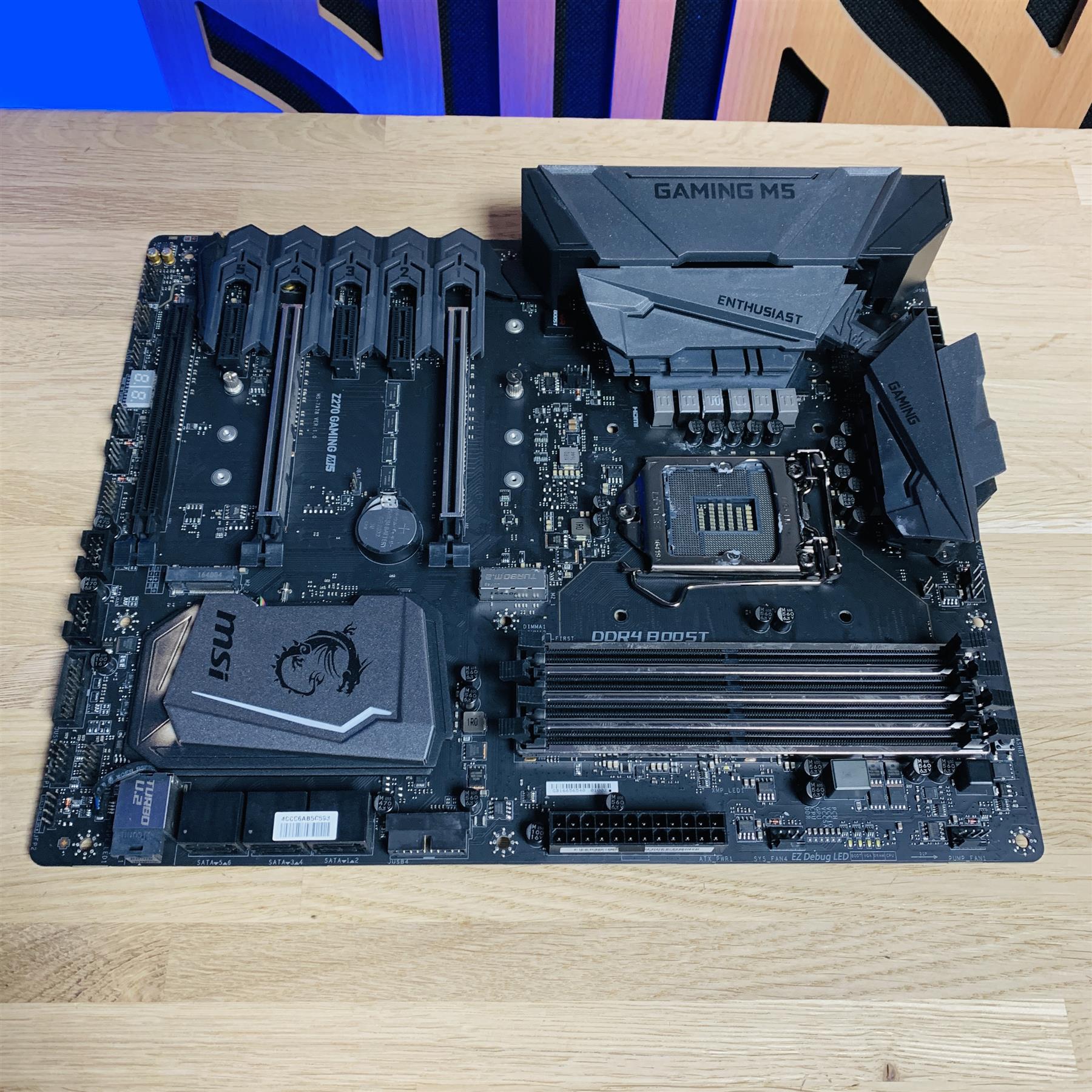

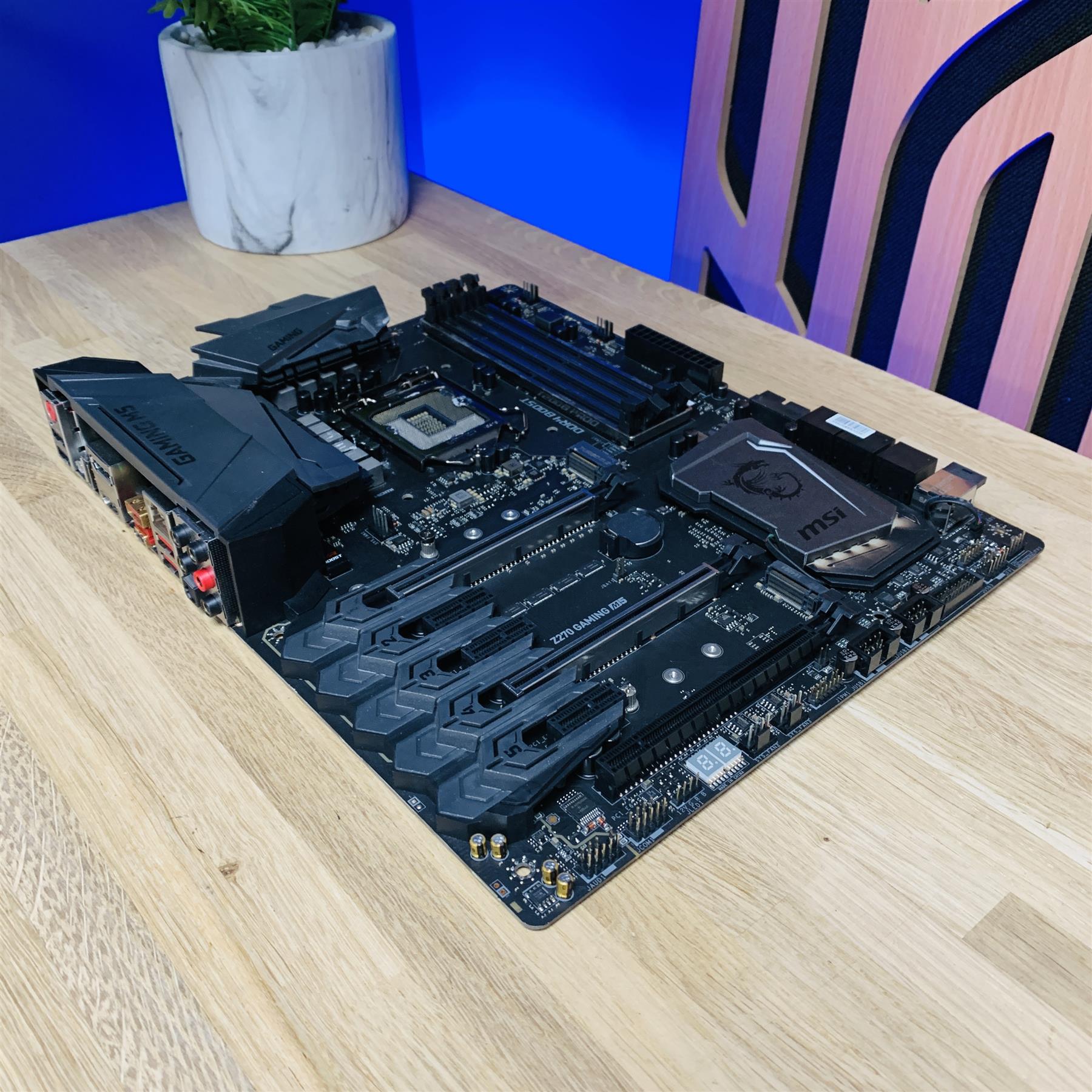

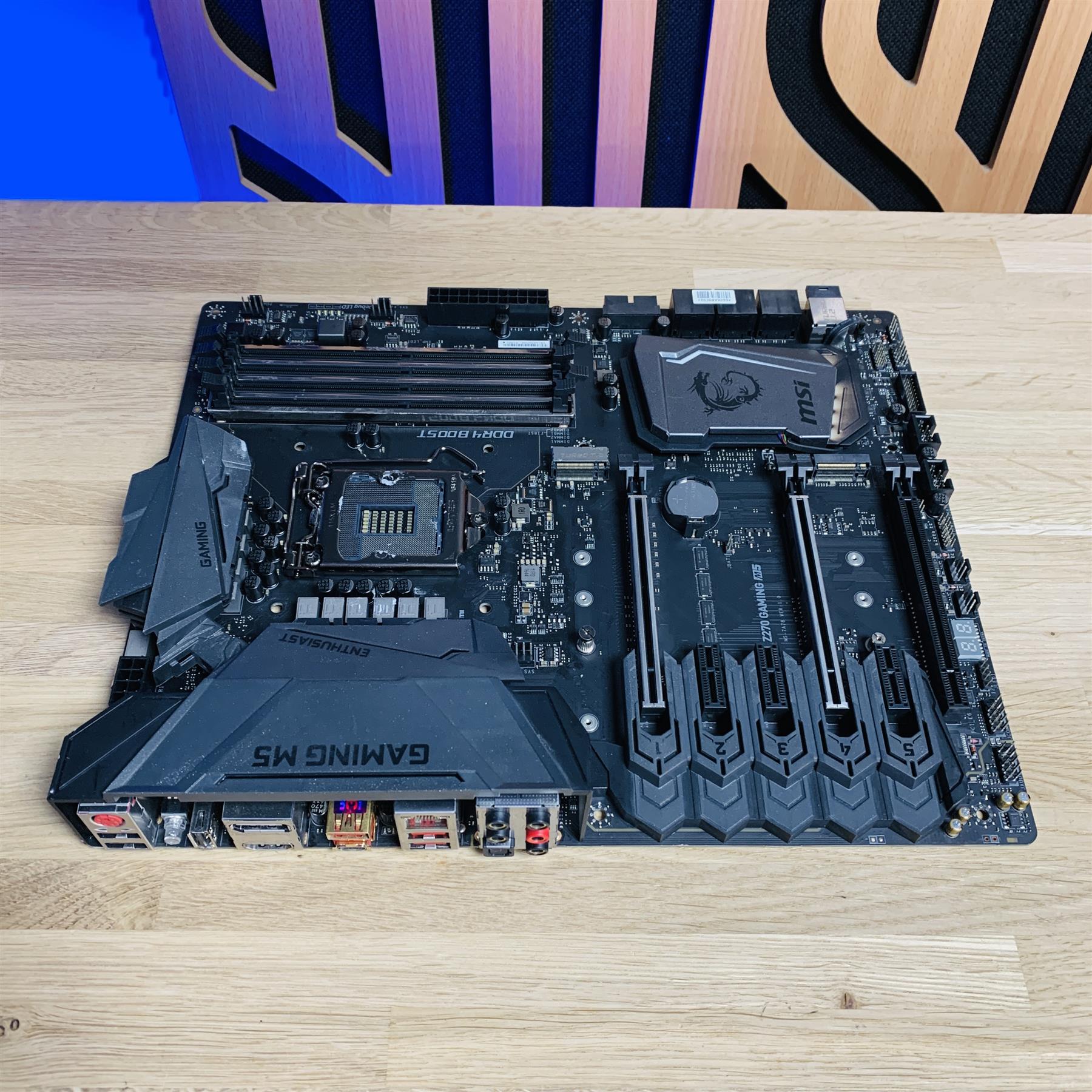

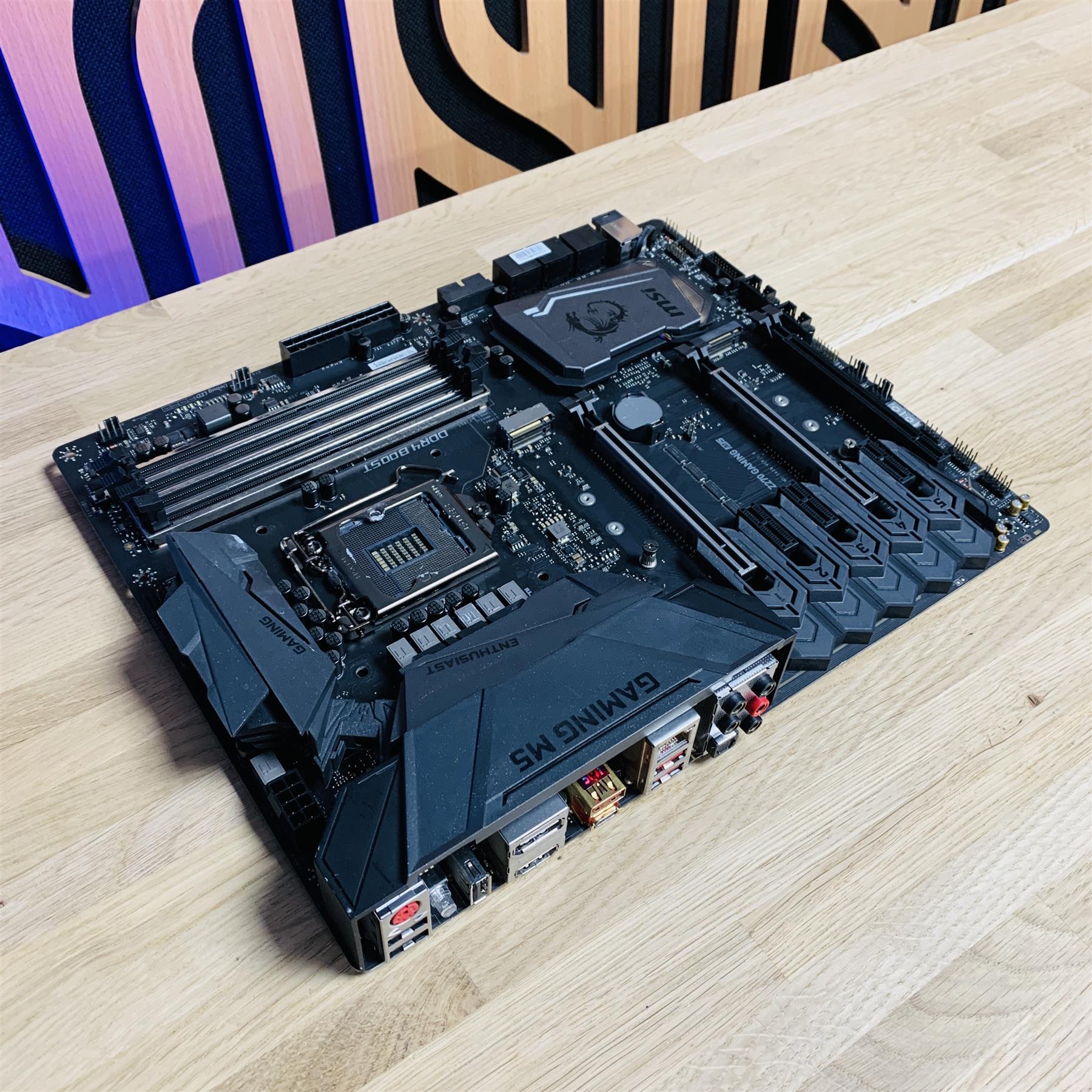

Why Buy New is pleased to offer this used MSI Z270 Gaming M5 Motherboard for sale.

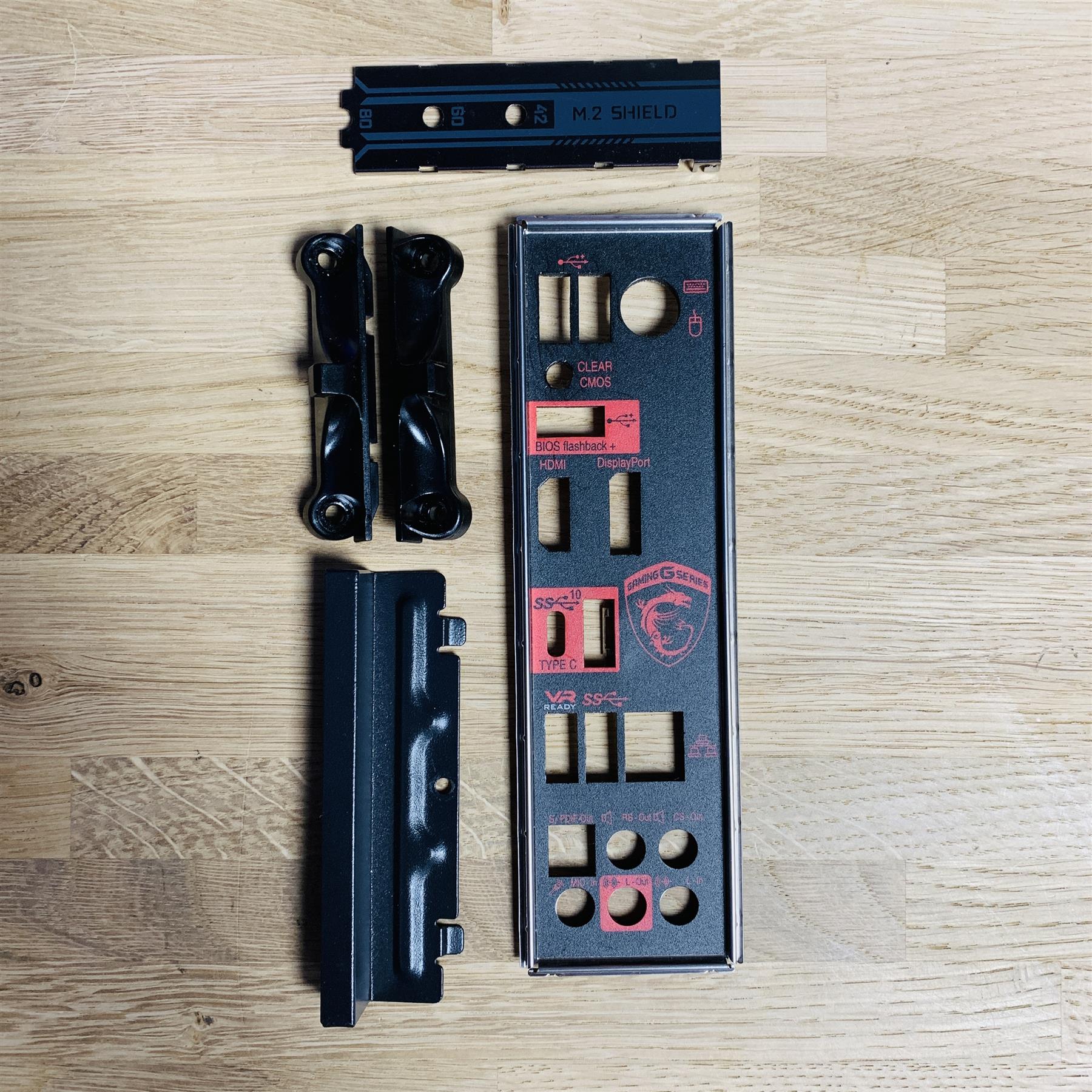

It is supplied in its original box (not original internal packaging) with accessories pictured.

Tested and in full working order. It is sold with a 3 month warranty.

The cosmetic condition is good. Please see images for further details.

FREE national courier delivery.

Why Buy... from us? Because all of our items go through a full inspection, get serviced (if required), PAT tested for electrical safety, deep cleaned and all come with a warranty. We are 100% committed to customer care and are always on hand pre or post-delivery for technical help and advice.

Features:

  • Socket 1151
  • Chipset Intel® Z270 Chipset
  • Memory Channel Dual
  • DIMM Slots 4
  • Max Memory (GB) 64
  • PCI-E x16 3
  • PCI-E Gen Gen3
  • PCI-E x1 3
  • SATAIII 6
  • M.2 Slot 2
  • RAID 0/1/5/10
  • TPM (header) 1
  • USB 3.1 ports (Front) 4(Gen1, Type A)
  • USB 3.1 ports (Rear) 1(Gen2, Type A),1 (Gen2, Type C), 2(Gen1, Type A)
  • USB 2.0 ports (Front) 4
  • USB 2.0 ports (Rear) 3
  • Serial ports(Front) 1
  • Audio ports (Rear) Realtek® ALC1220 Codec
  • DisplayPort 1
  • HDMI 1
  • DirectX 12
  • SLI Y
  • CrossFire Y
  • Form Factor ATX
CPU
• Supports 7th/6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
Chipset
• Intel® Z270 Chipset
Main Memory
• 4 x DDR4 memory slots, support up to 64GB
- 7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz*
- 6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133 MHz*
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memory.
Slots
• 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
• 3 x PCIe 3.0 x1 slots
Onboard Graphics
• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz(7th CPU), 4096x2160@24Hz(6th CPU), 2560x1600@60Hz
• 1x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

Multi-GPU
• Supports 3-Way AMD® CrossFire™ Technology
• Supports 2-Way NVIDIA® SLI™ Technology
Storage
• Intel® Z270 Chipset
• 6 x SATA 6Gb/s ports*
• 2 x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
- M2_2 slot supports 2242/ 2260 /2280 storage devices
- Intel® Optane™ Memory Ready for all M.2 slots
• 1 x U.2 port **
- Supports up to PCIe 3.0 x4 NVMe U.2 SSD
• Supports Intel® Smart Response Technology for Intel Core™ processors
* The SATA1/ SATA5 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1/ M.2_2 slot. The SATA5 and SATA 6 ports will be unavailable when M.2 PCIe SSD module has been installed in the M.2_2 slot. Please refer to page 33 for M.2 & SATA combination table.
** The U.2 port will be unavailable when an PCIe expansion card has been installed in PCI_E6 slot.
RAID
• Intel® Z270 Chipset
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 storage devices*
* M.2 PCIe RAID volume can be created with M.2 GENIE. Please refer to page 51 for details about M.2 GENIE.
USB
• ASMedia® ASM2142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
ƒ- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
• Intel® Z270 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- 7 x USB 2.0 (High-speed USB) ports (3 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
Audio
• Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio

LAN
• 1 x KillerTM E2500 Gigabit LAN controller

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 1 x U.2 port
- 2 x M.2 slots
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x Serial port connector
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- 1 x Flash BIOS Button
- 1 x 2-Digit Debug Code LED
Back Panel I/O Ports
- 1 x PS/2 mouse & keyboard combo port
- 3 x USB 2.0 ports
   *1 x Flash BIOS Button
- 1 x Clear CMOS button
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 1 x LAN (RJ45) port
- 2 x USB 3.1 Gen1 Type-A ports
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks

Dimension
• 12.0 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

Mounting
• 9 mounting holes
