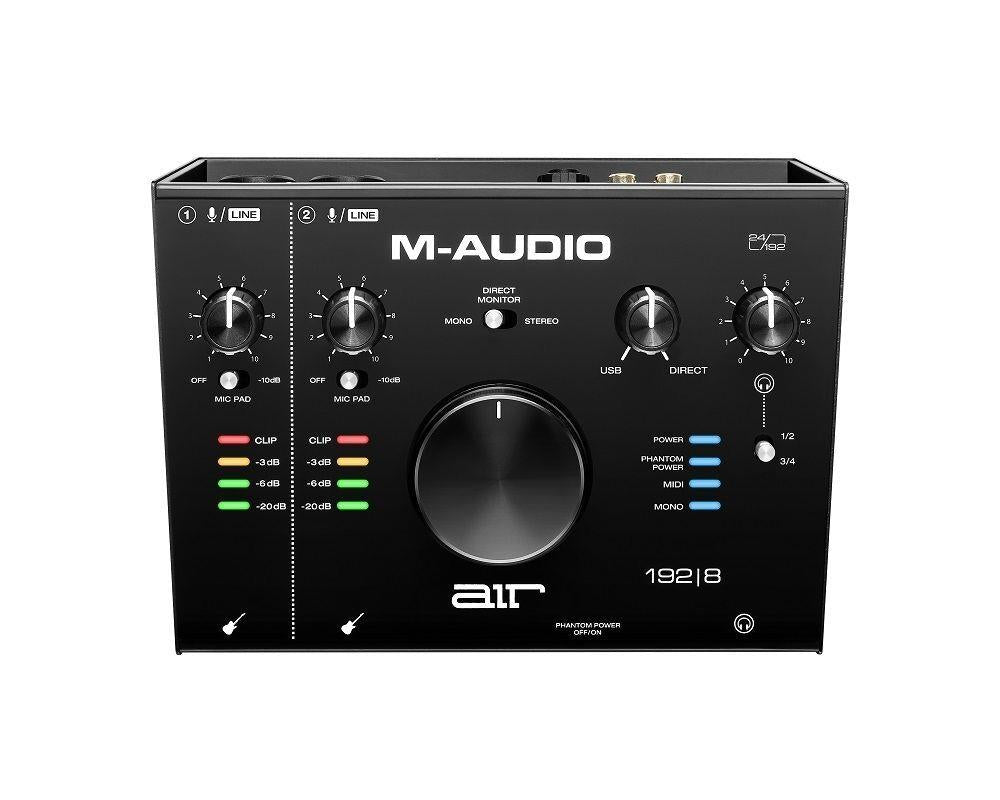

M-Audio AIR 192 | 8 Audio Interface

Here we have the M-Audio AIR 192 | 8 in B-Stock. The B-Stock versions will come boxed as new with all accessories and a 1-year warranty. Please note these items have been opened but never used.

This is the M-Audio AIR 192 | 8 from M-Audio's new AIR series of audio interfaces. The AIR 192 | 8 is the second largest in this new range and is just right for those artists and podcasters who take themselves seriously and want professional-standard recording without having to rent studio space. This brilliant interface can accommodate the majority of your music-making equipment including microphones, instruments and MIDI gear, giving you 24-bit/192kHz studio-quality recordings at an affordable price. In addition to this you'll get the fantastic Ableton Live Lite and MPB Beats software which comes included as standard.

No-compromise professional studio quality and features at an amazing value!

With the AIR 192|8, you can create 24-bit/192kHz studio-quality recordings with an intuitive and easy-to-use audio interface. Boasting an elegant pro-grade metal chassis with a large central volume knob, the AIR 192|8 features our exclusive Crystal low-noise pre-amps and pristine A/D converters that deliver the highest audio performance in its class. The AIR 192|8's flexible inputs enable you to record up to 2 channels at once with its 2 dedicated XLR+1/4-inch balanced combo inputs with switchable -10dB mic pad, and 2 all-new 1/4-inch instrument inputs that have a specially designed gain and impedance stage to provide the most accurate representation of a guitar or bass plugged directly into the interface.

The (2) 1/4-inch and (4) RCA outputs with USB/Direct control, and Direct Mono/Stereo switch provide multiple output options for connecting to outboard gear, DJ mixers, or studio monitors. The headphone output with independent level, USB/Direct, and switchable 1/2 or 3/4 audio stream controls are perfect for discretely listening to a cue mix, sub mix, or main mix. MIDI In and Out connections are included for connecting synths, sequencers and external MIDI gear. The AIR 192|8 connects to your Mac or PC via a standard USB or USB-C port using one of the two included cables. This premium hi-speed USB connection enables you to have zero-latency monitoring of your inputs, making the recording process easier than ever.

We've included software to match your style!

The AIR 192|8 comes complete with a software package that has everything to get you started making professional recordings right out of the box. With a powerful DAW to suit your production needs, AIR 192|8 includes Ableton Live Lite and MPC Beats.

We’ve also added an entire Effects Plugin, Virtual Instruments and Loop package to cater to all your production needs. Whether you need a guitar tone, reverb, or delay we’ve got your effects needs covered with Revalver, AIR effect plugins and AIR’s Creative FX Collection Plus. With the included AIR Virtual Instrument plugins, you’ll have a virtual drummer, synth, strings, percussion, organ and piano plugins to add world-class-sounding instruments to your songs with ease.

Crystal Preamps, Pristine A/D Converters & Premium Components

Our engineers designed the Crystal Preamps to provide you with a transparent, low-noise preamp that guarantees the best sound from your microphones and captures your performance exactly the way you intended. The AIR 192|8 incorporates pristine A/D converters for 24-bit resolution digital audio with explosive dynamic range that captures every nuance and subtlety of the performance. When combined with the class-leading sample rates of up to 192kHz, you can be sure your recordings are completely clear and true to the performance. With layout and component choices that were carefully crafted by our American engineering team, you're getting the best sound available.

Hear the Performance Now - Not a Second Later

When recording, you want to focus on capturing that perfect moment, and getting the best performance out of your artist and talent. You don't want to be bogged down by "clicks", "pops" or latency. The AIR 192|8 not only features a high-speed USB connection for providing the lowest round trip latency (2.59ms) between your machine and your hardware, but it also features monitor mix control for listening directly to the source inputs, providing you with zerolatency technology.

Features

• 24-bit/192kHz resolution for professional recording and monitoring
• Hi-speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*
• Transparent Crystal preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
• VU LED meters for dialling in the perfect level
• Flexible inputs: (2) XLR+1/4-inch TRS combo with -10dB mic pad or 1/4-inch instrument inputs
• Use any combination of TRS combo or 1/4-inch instrument input on the two channels: (2) TRS, (2) instrument or (1) of each
• MIDI input/output for connecting virtually any external MIDI gear
• Stereo 1/4-inch and RCA outs with direct mono/stereo switch
• (2) RCA assignable auxiliary outputs; 1/4-inch headphone output with independent source and level controls
• Rugged metal chassis; large central control for easy volume adjustment
• USB/Direct knob for balancing between the input signal and the computer signal

*Round trip latency is dependent on buffer settings, and computer hardware

Specifications

Mic Inputs 1-2 (Balanced XLR):

• Dynamic Range: 108dB (A-weighted)
• THD+N: 0.001% (1kHz, +0.8dBu, -1dBFS)
• Frequency Response: 20Hz 20kHz (+/-0.2dB)
• Preamp EIN -129dBu: (150 ohms source, unweighted)
• Max Input Level: +1.8dBu
• Gain Range: 62dB

Line Inputs 1-2 (Balanced 1/4" TRS):

• Dynamic Range: 106dB (A-weighted)
• THD+N: 0.002% (1kHz, +19.7dBu, -1dBFS)
• Frequency Response: 20Hz - 20kHz (+/-0.1dB)
• Gain Range: 61dB

Instrument Inputs 1-2 (Unbalanced 1/4 TS):

• Dynamic Range: 106dB (A-weighted)
• THD+N: 0.001% (1kHz, +5.8dBu, -1dBFS)
• Frequency Response: 20Hz - 20kHz (+/-0.1dB)
• Max Input Level: +6.8dBu
• Gain Range: 24dB
• Input Impedance: ~1M ohms

Main TRS Outputs 1/L & 2/R (Balanced 1/4" TRS):

• Dynamic Range: 109dB (A-weighted)
• THD+N: 0.003% (1kHz, -1dBFS)
• Frequency Response: 20Hz - 20kHz (+/-0.1dB)
• Maximum Output Level: +13dBu

Main & Aux RCA Outputs 1 - 4 (Unbalanced RCA):

• Dynamic Range: 109dB (A-weighted)
• THD+N: 0.003% (1kHz, -1dBFS)
• Frequency Response: 20Hz - 20kHz (+/-0.1dB)
• Maximum Output Level: +7dBu

Headphone Outputs (Stereo 1/4" TRS):

• Dynamic Range: 101dB (A-weighted)
• THD+N: 0.008% (1 kHz, -1dBFS, 36mW)
• Minimum Impedance: 32 ohms

General:

• Dimensions (W x D x H) 19.81 x 15.24 x 7.01cm (7.80" x 6.0" x 2.76")
• Weight: 0.9kg (1.98 lbs.)
