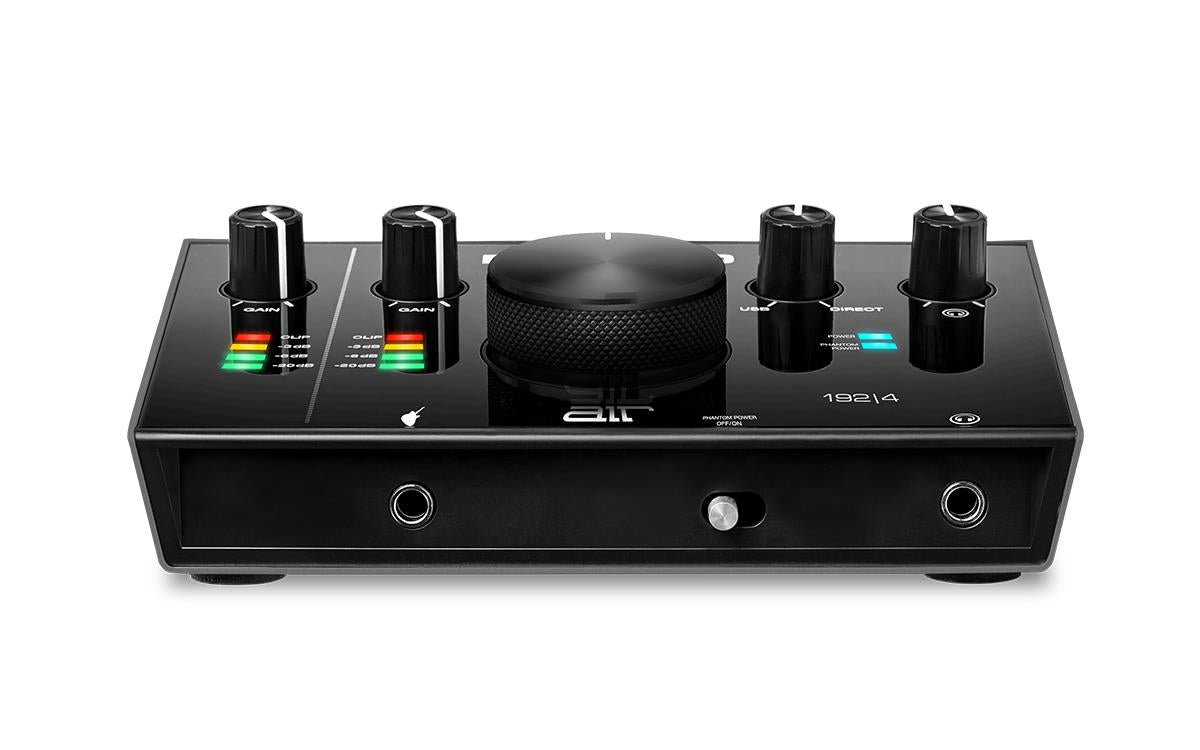

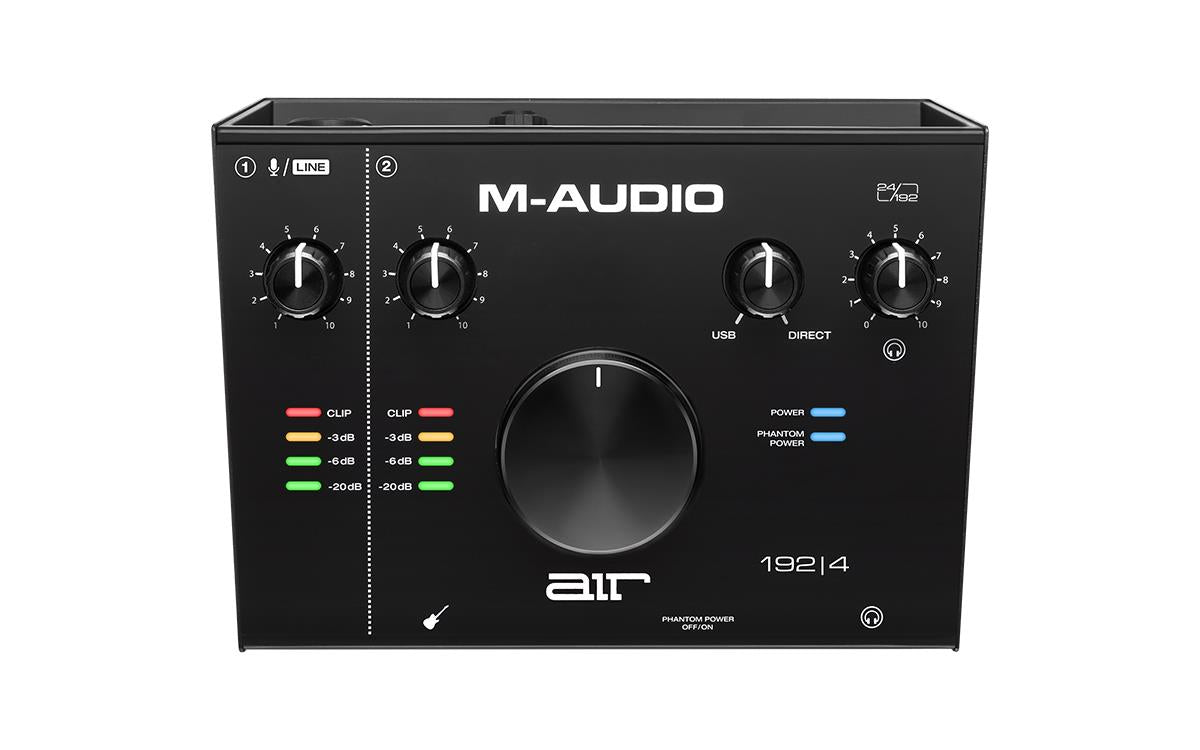

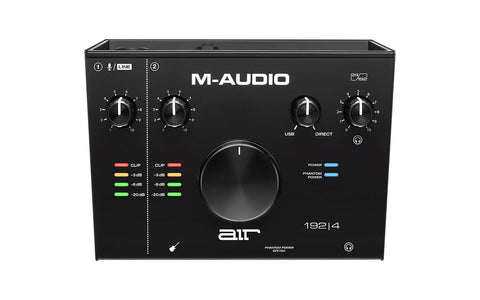

M-Audio AIR 192|4 2-In/2-Out 24/192 USB Audio Interface

Here we have the M-Audio AIR 192|4 2-In/2-Out 24/192 USB Audio Interface in B-Stock. The B-Stock versions will come boxed as new with all accessories and a 1-year warranty. Please note these items have been opened but never used.

With the AIR 192|4, you can create flawless 24-bit/192kHz studio-quality recordings with an intuitive and easy-to-use audio interface. The AIR 192|4 enables you to record up to 2 channels at once with its dedicated XLR+¼” balanced combo input, and an all-new ¼” instrument input that has a specially-designed gain and impedance stage to provide the most accurate representation of a guitar or bass plugged directly into the interface.

Features:

• 24-bit/192kHz resolution for professional recording and monitoring

• Hi-Speed USB circuitry gives you the fastest connection, with a class-leading round trip latency of only 2.59ms*

• Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality

• VU LED meters for dialing in the perfect level

• XLR+¼” TRS combo input with dedicated signal circuit and (1) ¼” instrument input with dedicated signal circuit for the most accurate sound available

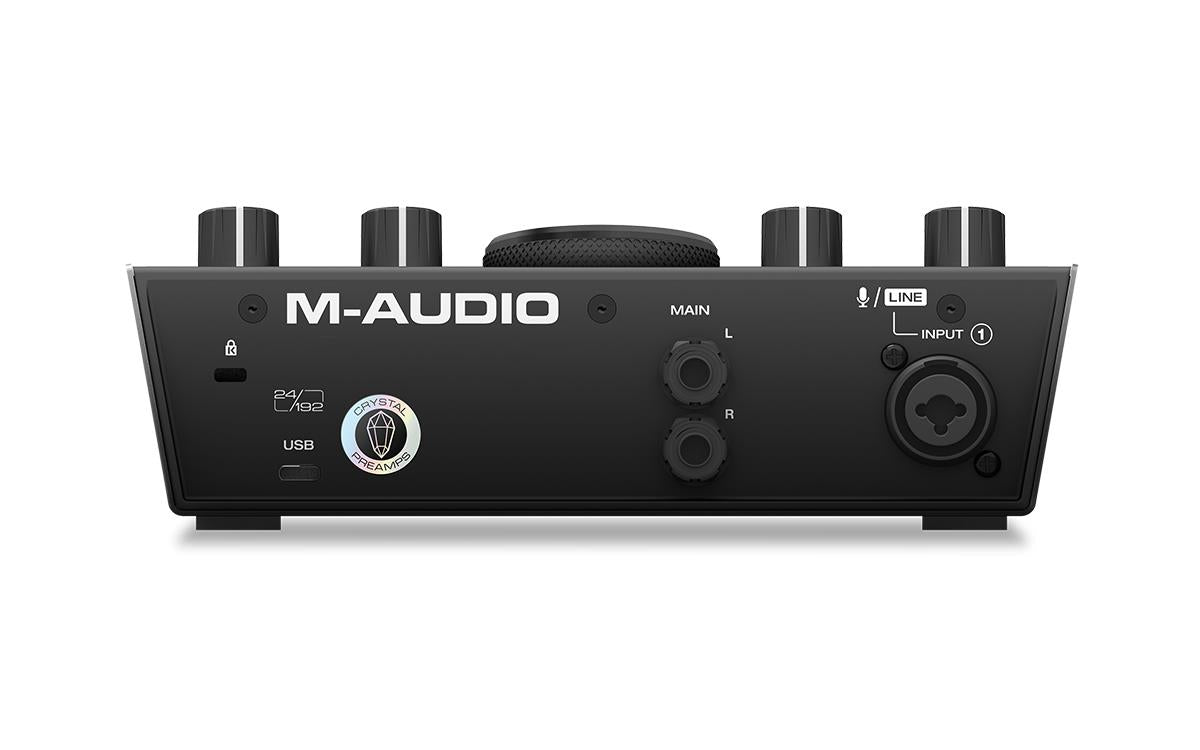

• Stereo ¼” outs; ¼” headphone out with independent level control

• Rugged metal chassis; large central control for easy volume adjustment

• USB/Direct knob for balancing between the input signal and the computer signal

Mic Input 1 (balanced XLR)

• FREQUENCY RESPONSE: 20 Hz – 20 kHz (+0.1 dB)
• DYNAMIC RANGE: 104 dB (A-weighted)
• SIGNAL-TO-NOISE RATIO: 104 dB (+1.0 dBu, A-weighted)
• THD+N: 0.003%
• PREAMP EIN: -128 dBu (max gain, 150 Ω source, A-weighted)
• MAX INPUT LEVEL: +1.5 dBu
• GAIN RANGE: 55 dB

Line Input 1 (balanced 1/4" [6.35 mm] TRS)

• FREQUENCY RESPONSE: 20 Hz – 20 kHz (+0.05 dB)
• SIGNAL-TO-NOISE RATIO: 101 dB (1 kHz, +4 dBu, A-weighted)
• THD+N: 0.003%
• MAX INPUT LEVEL: 16 dBu
• GAIN RANGE: 55 dB

Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)

• FREQUENCY RESPONSE: 20 Hz – 20 kHz (+0.05 dB)
• DYNAMIC RANGE: 100 dB (A-weighted)
• SIGNAL-TO-NOISE RATIO: 102 dB (+ 4 dBu, A-weighted)
• THD+N: 0.004%
• MAX INPUT LEVEL: 6 dBu
• INPUT IMPEDANCE: 1 MΩ
• GAIN RANGE: 24 dB

Main Outputs, L and R (balanced, differential 1/4" [6.35 mm] TRS)

• FREQUENCY RESPONSE: 20 Hz – 20 kHz (+0.06 dB)
• DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO: 102 dB (A-weighted)
• THD+N: 0.005%
• MAX OUTPUT LEVEL: +7 dBu (1 kHz, -1 dBFS)

Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS)

• THD+N: 0.005%
• OUTPUT IMPEDANCE: 10 Ω

General

• POWER: USB-bus-powered
• DIMENSIONS (WIDTH X DEPTH X HEIGHT): 8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm)
• WEIGHT: 2.0 lbs. 0.9 kg
