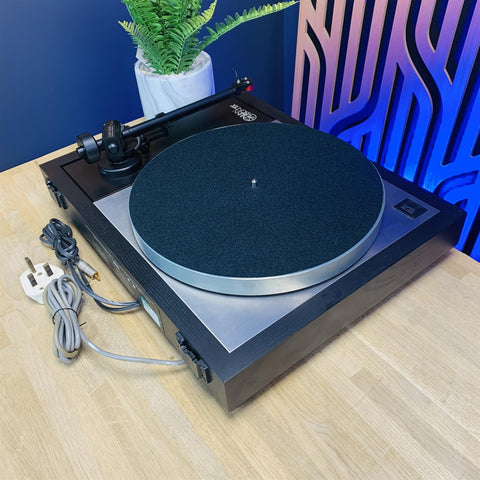

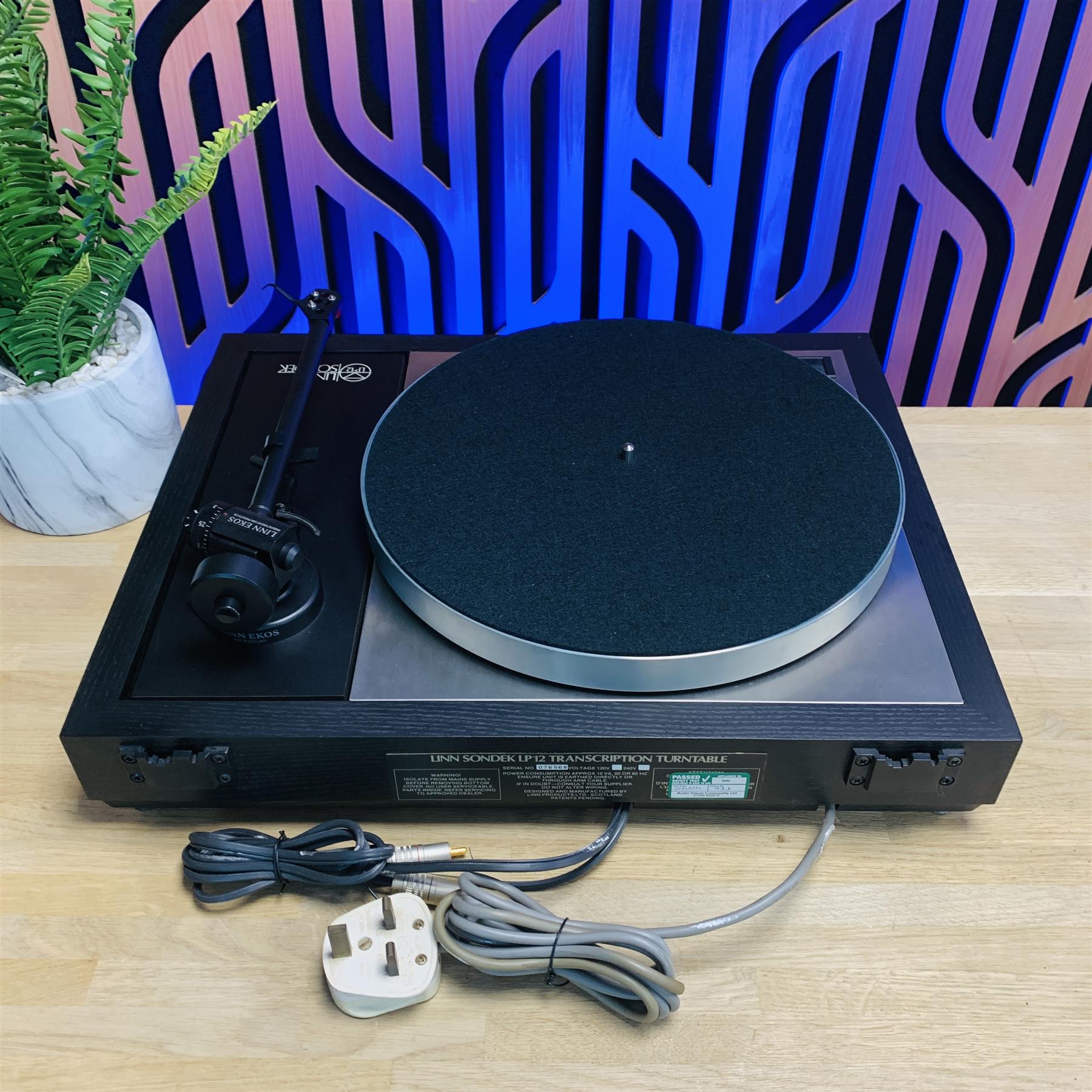

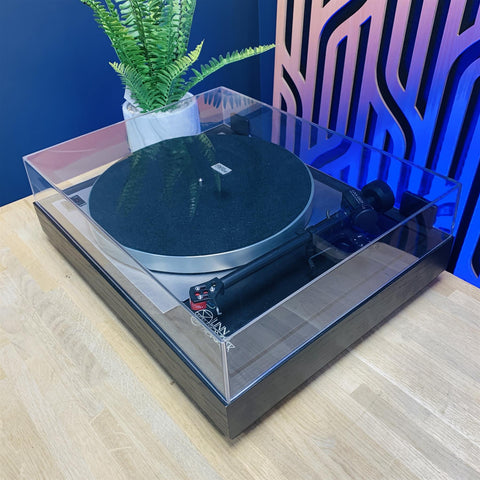

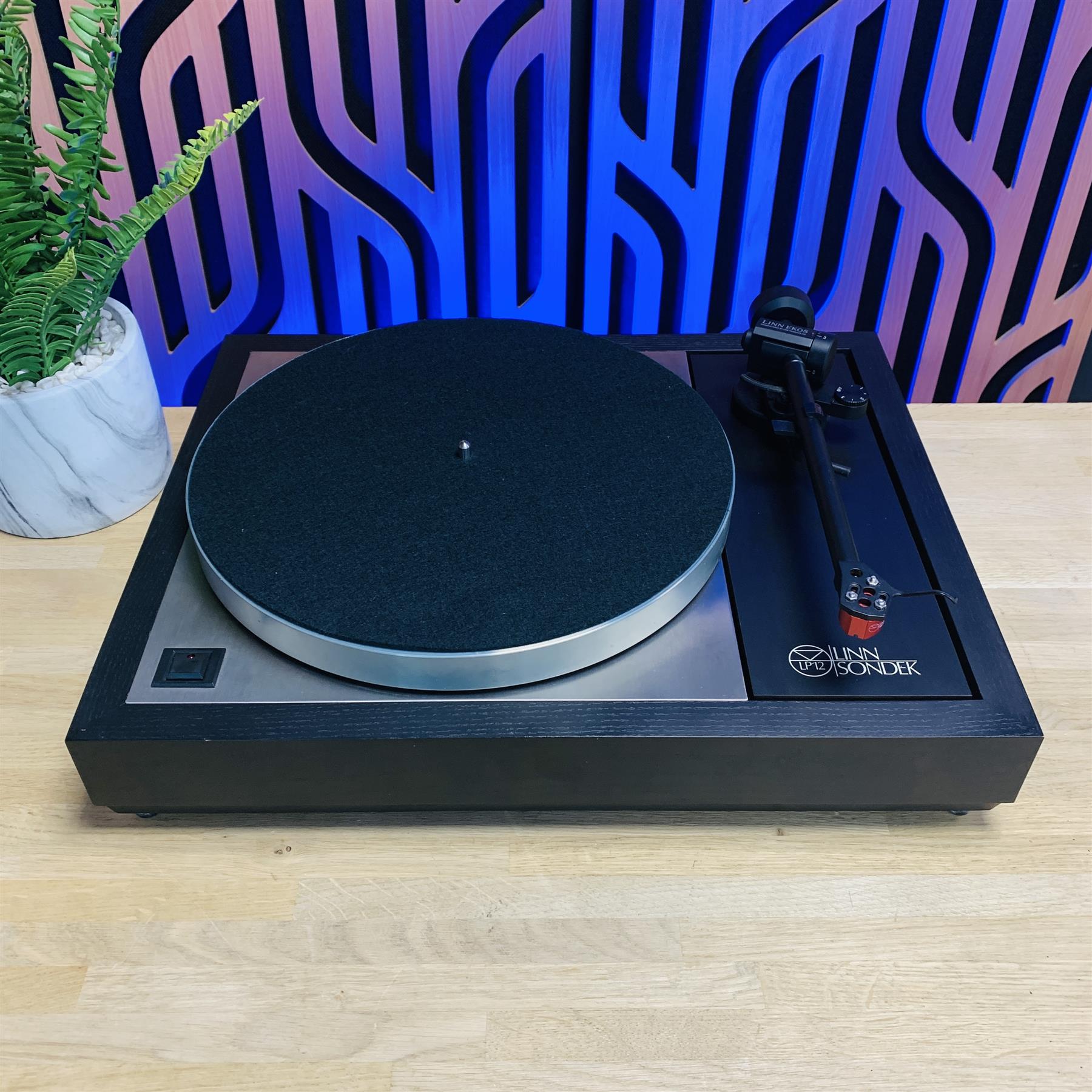

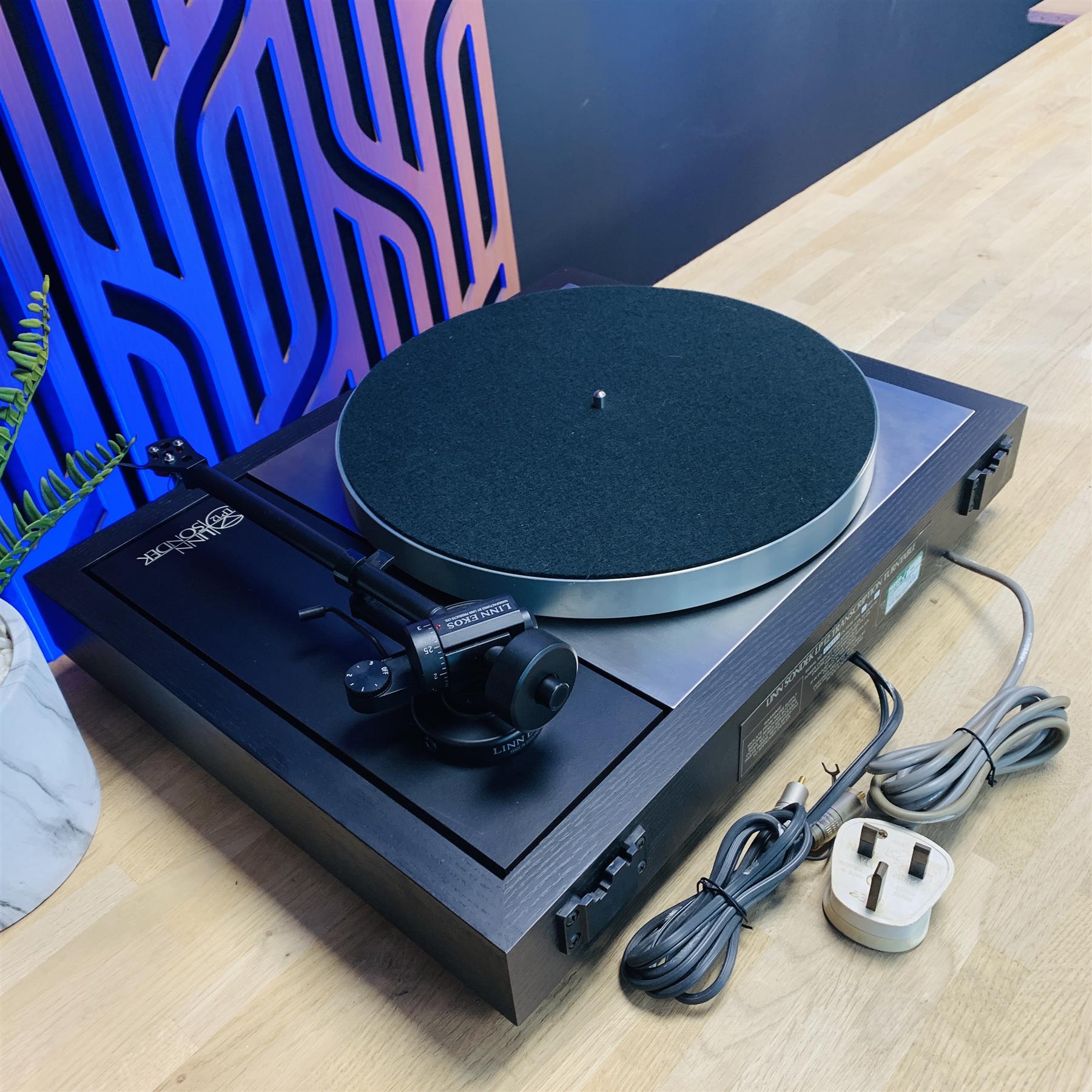

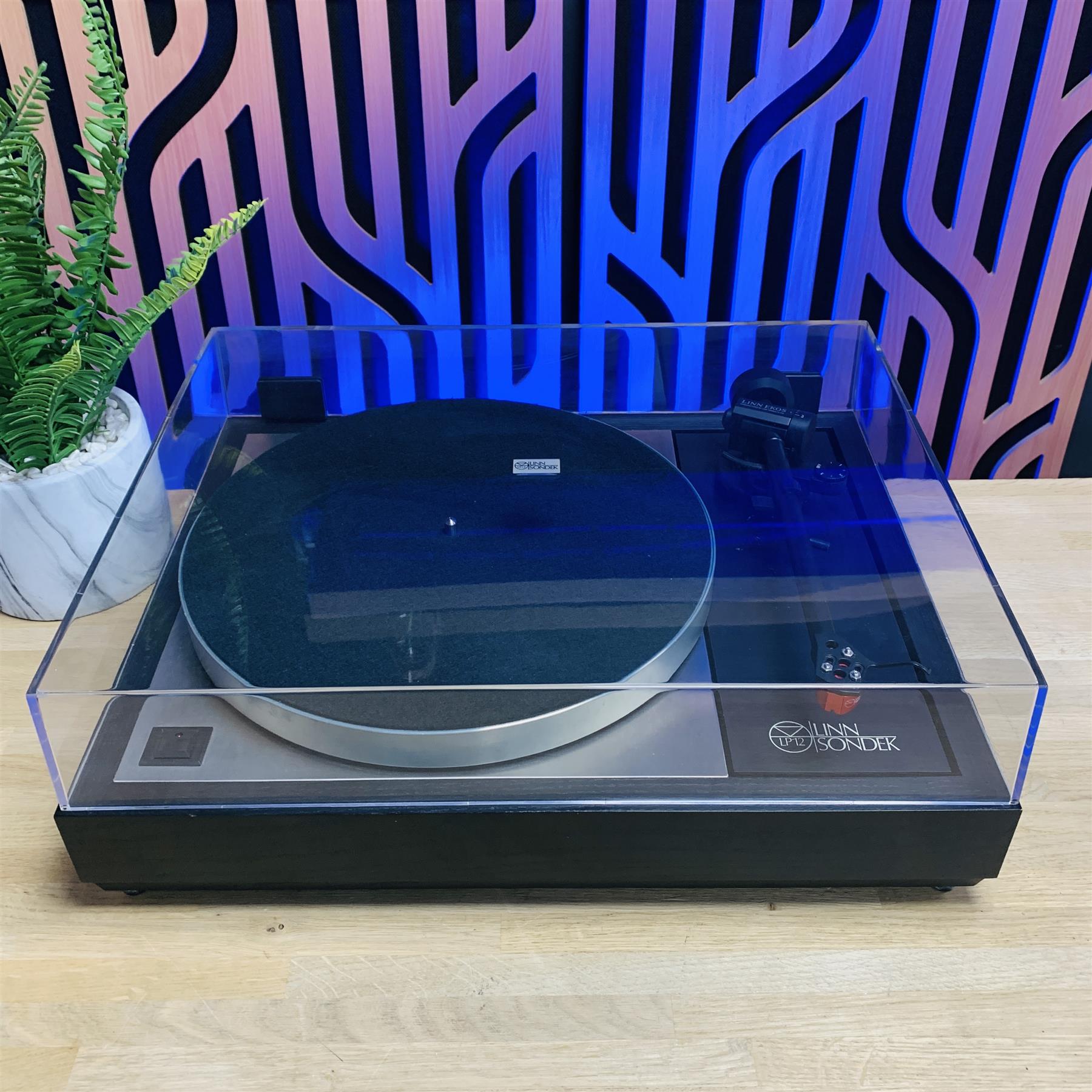

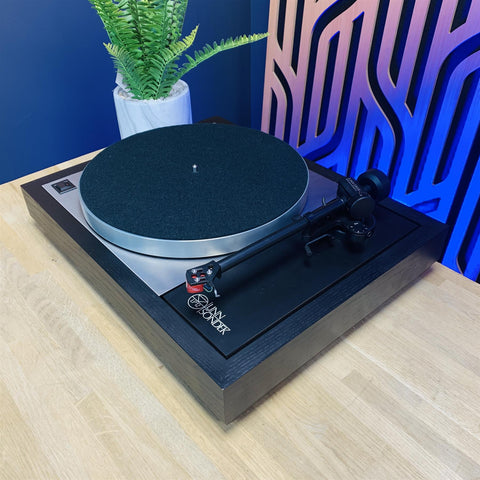

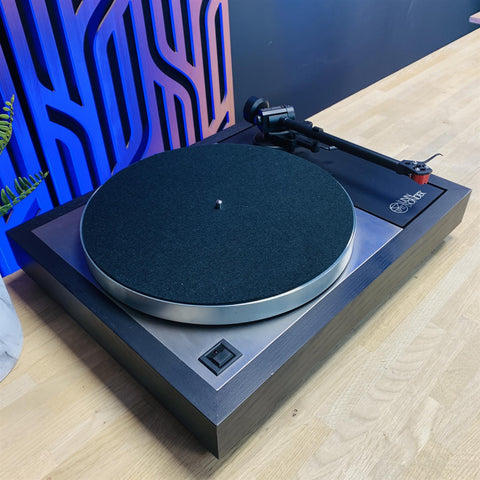

Linn Sondek LP12 (Black Ash) with Ekos arm and Troika Cartridge

Why Buy New is pleased to offer for sale this brilliant Linn Sondek LP12 (black Ash) with Ekos arm and Troika cartridge.

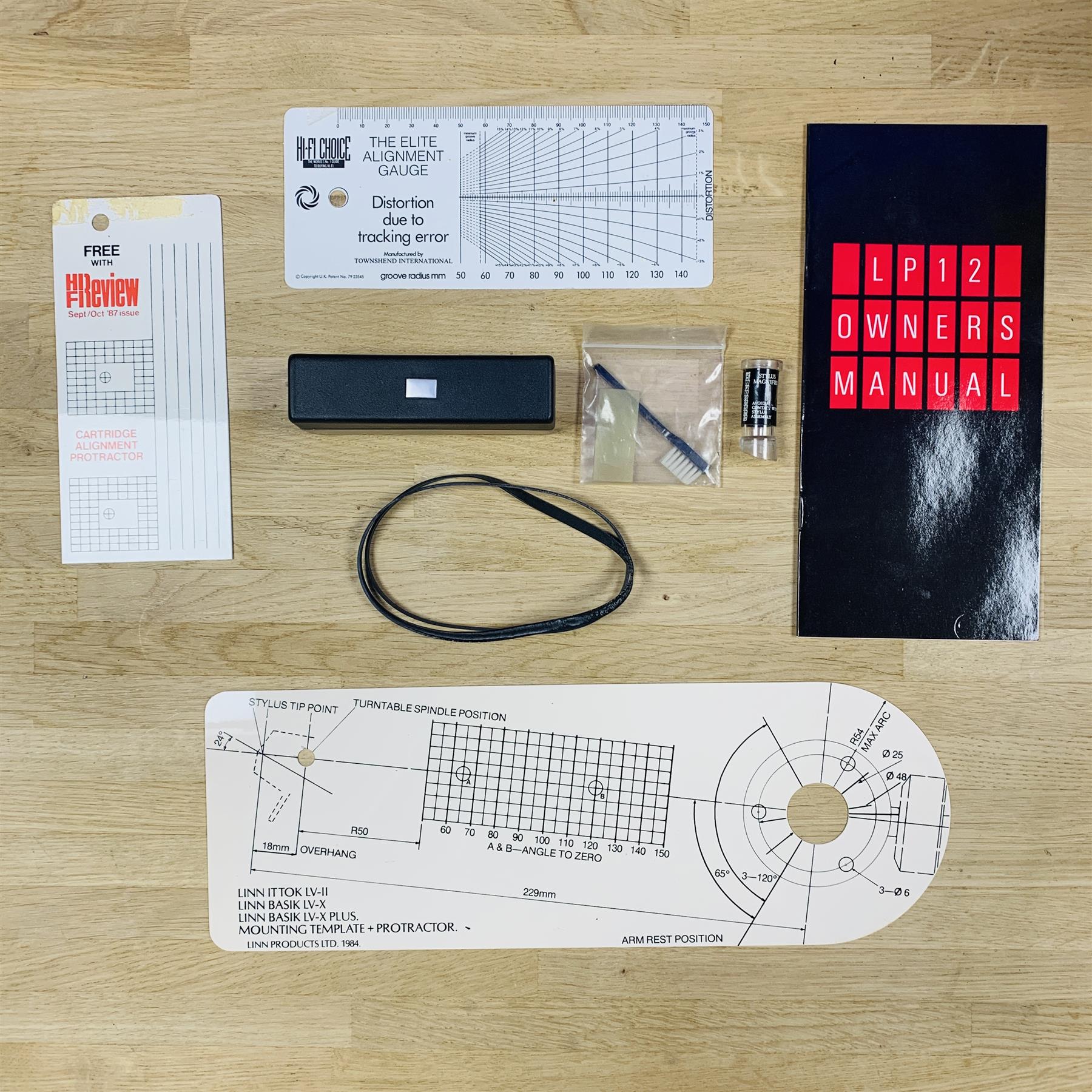

It includes the original box and packaging, user manual, stylus brush, record brush, and alignment gauges.

This has been tested and is in full working order. It is sold with a 3 month warranty.

The cosmetic condition is good. There are some minor marks. Please see the condition in the images.

FREE national courier delivery.

Why Buy... from us?
Because all of our items go through a full inspection, get serviced (if required), PAT tested for electrical safety, deep cleaned and all come with a warranty. We are 100% committed to customer care and are always on hand pre or post-delivery for technical help and advice.

EKOS TONEARM

• The EKOS is manufactured to very close tolerances. To follow are the main features of the arm
• The headshell is machined from a solid black of hi-strength aluminium alloy which is far stronger than any casting technique
• The armtube is bonded to the headshell and the main body using an advanced adhesive
• The bearing assembly is matched to tolerances of 1 micron
• The lift/lower device is damped in both directions to eliminate unwanted vibration
• The tracking weight and bias adjustment are similar to the Ittok, but the spring is made to a closer tolerance so the tracking weight can be set even more accurately
• The EKOS uses the same telescopic arm mounting arrangement as the Ittok.
• There is also an EKOS armboard available from your dealer - the only difference with this
• board is that there is no hole for the Ittok armrest.

Specifications

• Lateral bearing friction <20mg
• Horizontal bearing friction <20mg
• Effective mass 11.5g
• Tracking weight adjustment 0-3g
• Cartridge range 3-9g
• Pivot to stylus 229mm
• Stylus overhang 18mm
• Effective length 211mm

LINN TROIKA MOVING COIL CARTRIDGE

• Introduced 1986
• Discontinued 1994

TECHNICAL SPECIFICATIONS

• Frequency Response: 20Hz to 20KHz +/- 1dB
• Tracking Weight Range: * 1.5 – 1.7 g
• Compliance (cu): 10
• Recommended Load: >10ohm; 470ohm nominal
• Capacitance Loading: Not critical
• Tracking angle (deg): 20
• Output: 100uV
• Stylus Type: Vital
• Connection Method: Flying Wire
• Weight: 7.0g
• Separation @ 1kHz: Better than 30dB
• Channel balance @ 1kHz: within 1dB

* Tracking is normally set to between 1.6 & 1.7 for Moving coil cartridges. Exact tracking weight should be set by listening to the cartridge at normal room temperature.
