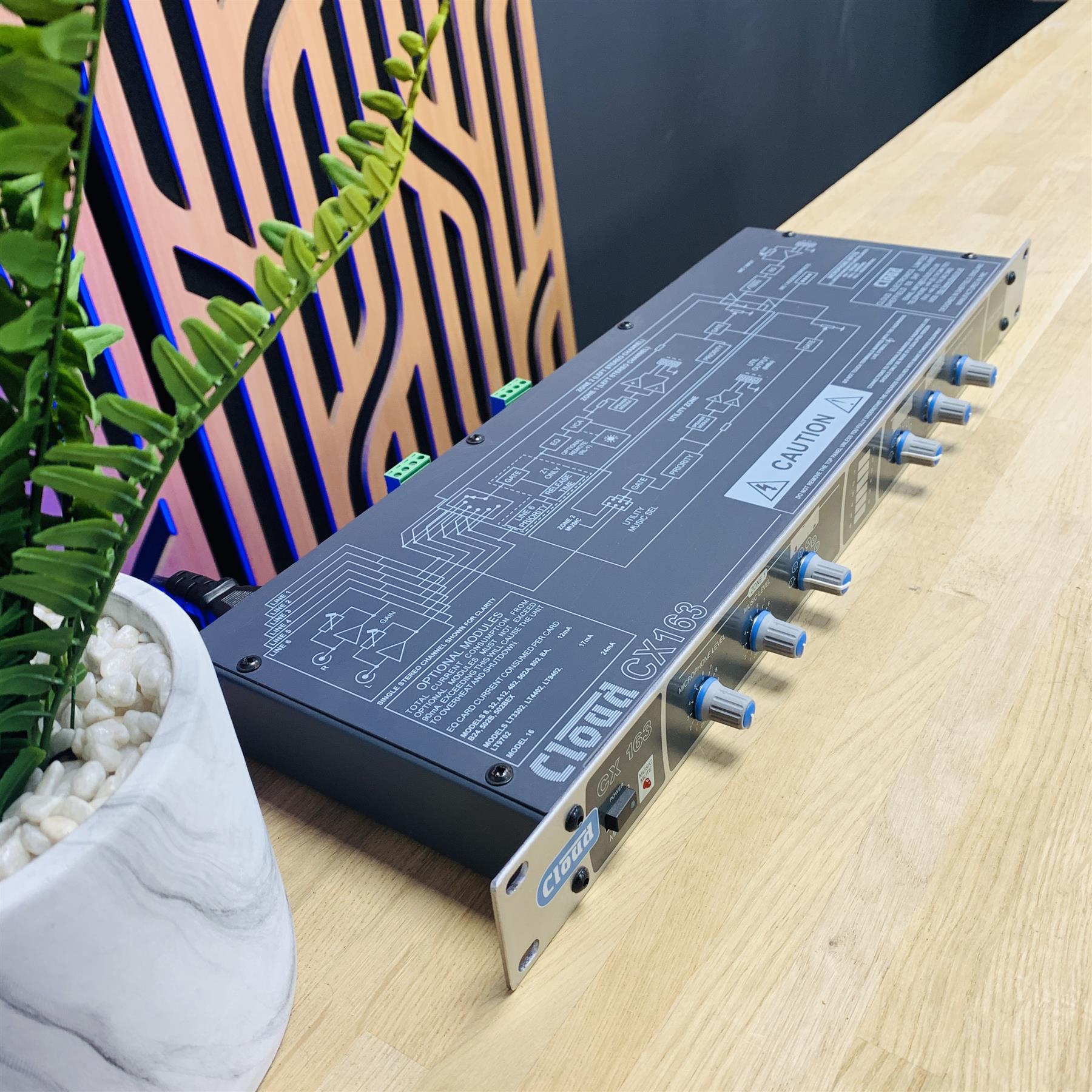

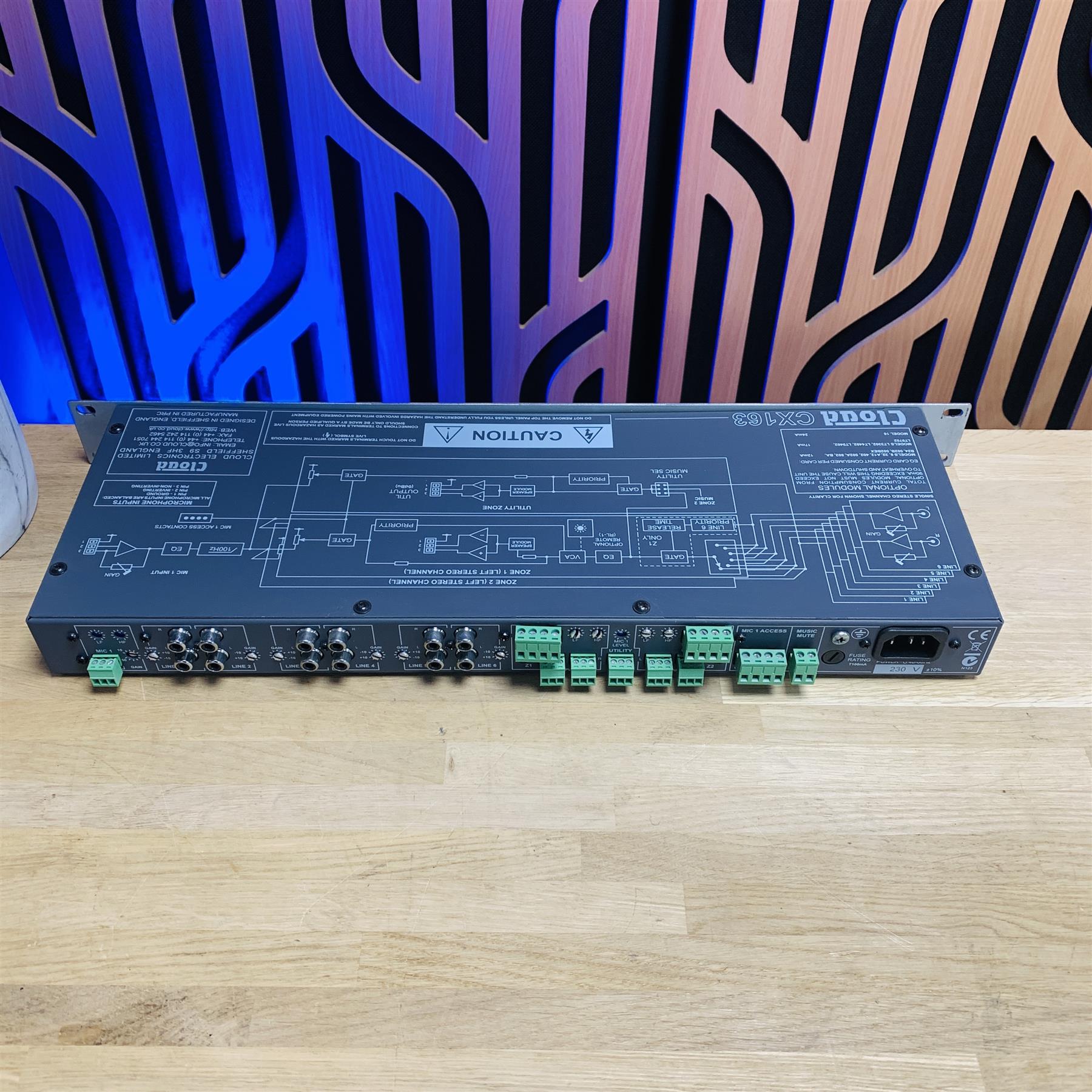

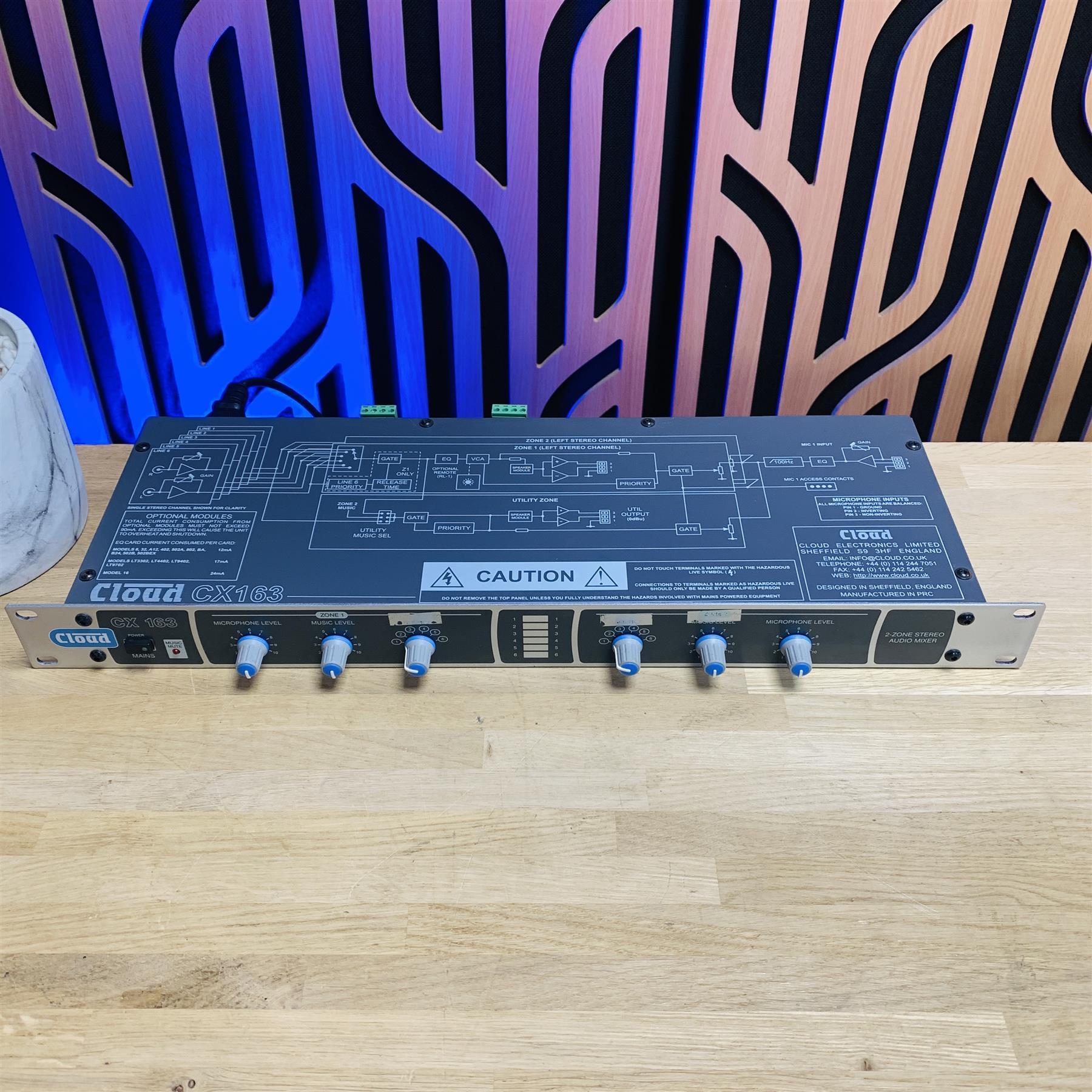

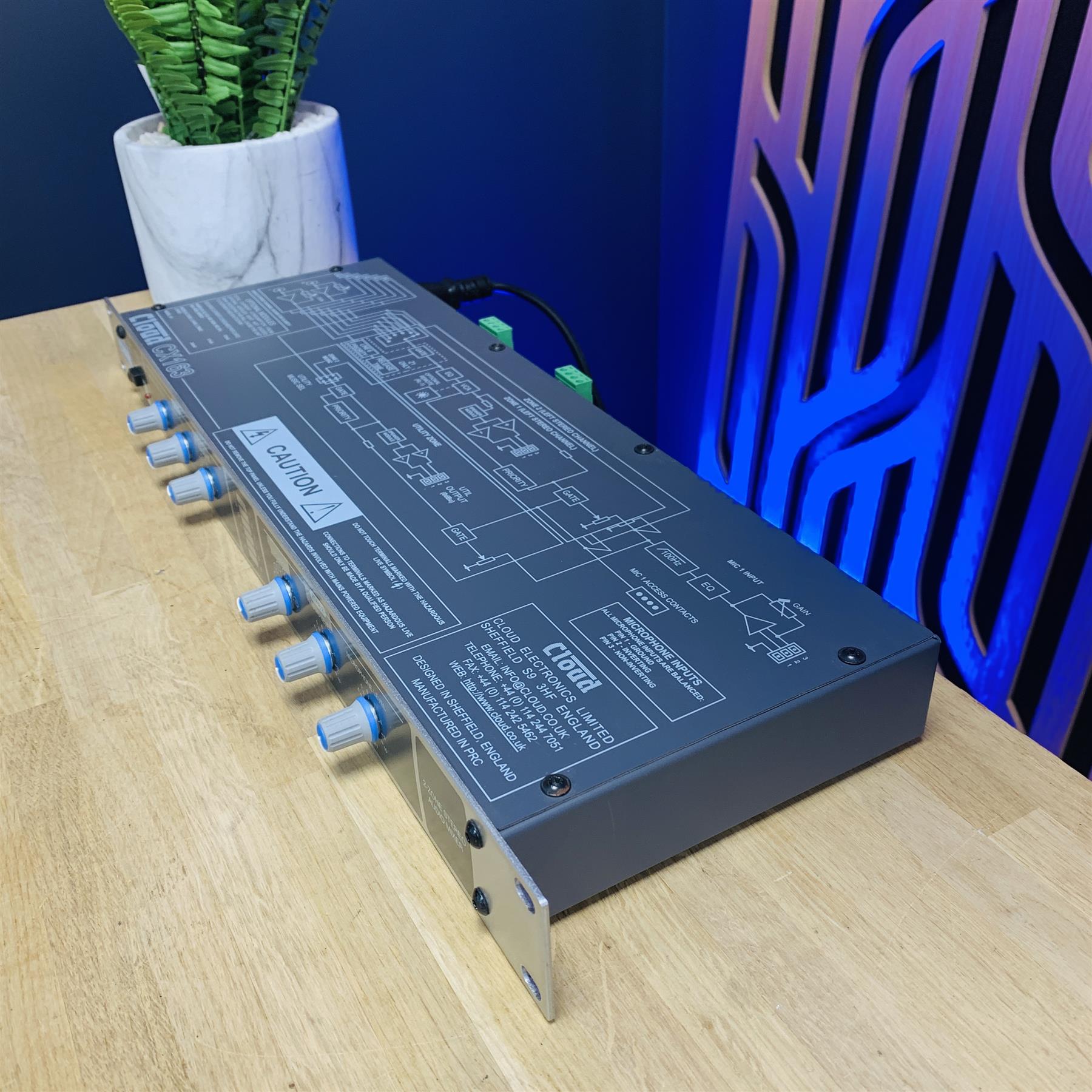

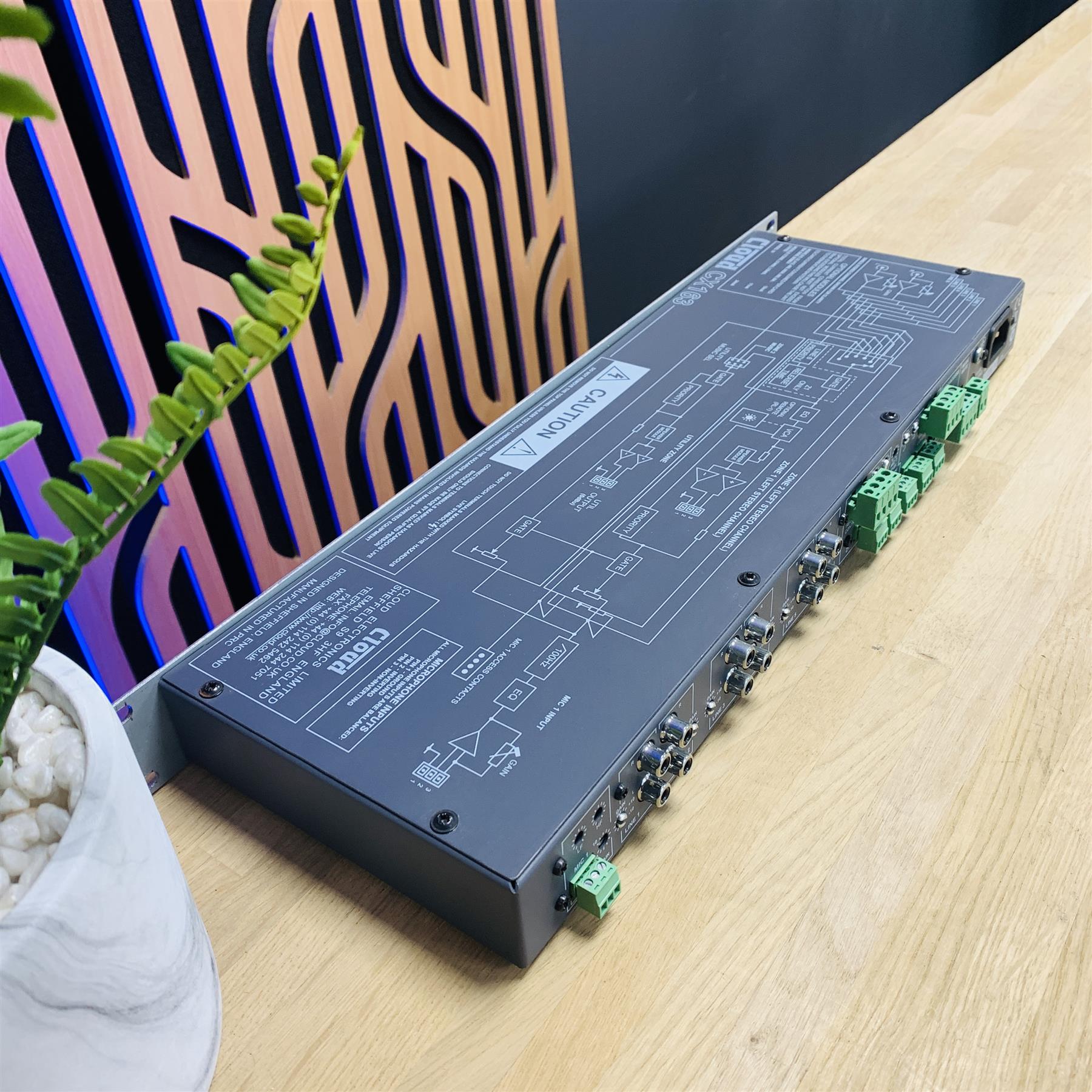

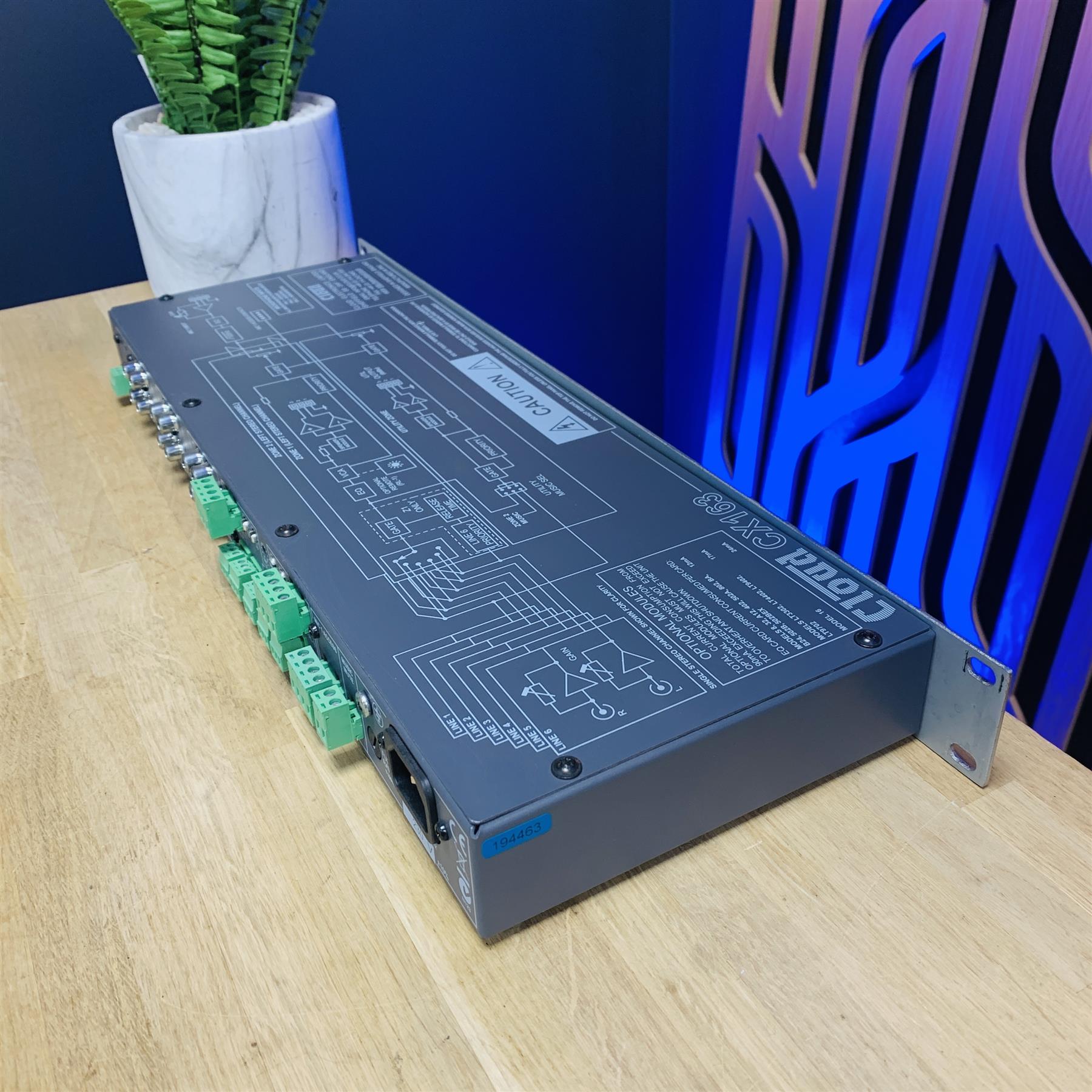

Cloud CX163 2 Zone Preamp Mixer

Why Buy New is pleased to offer for sale this brilliant Cloud CX163 2 Zone Preamp Mixer.

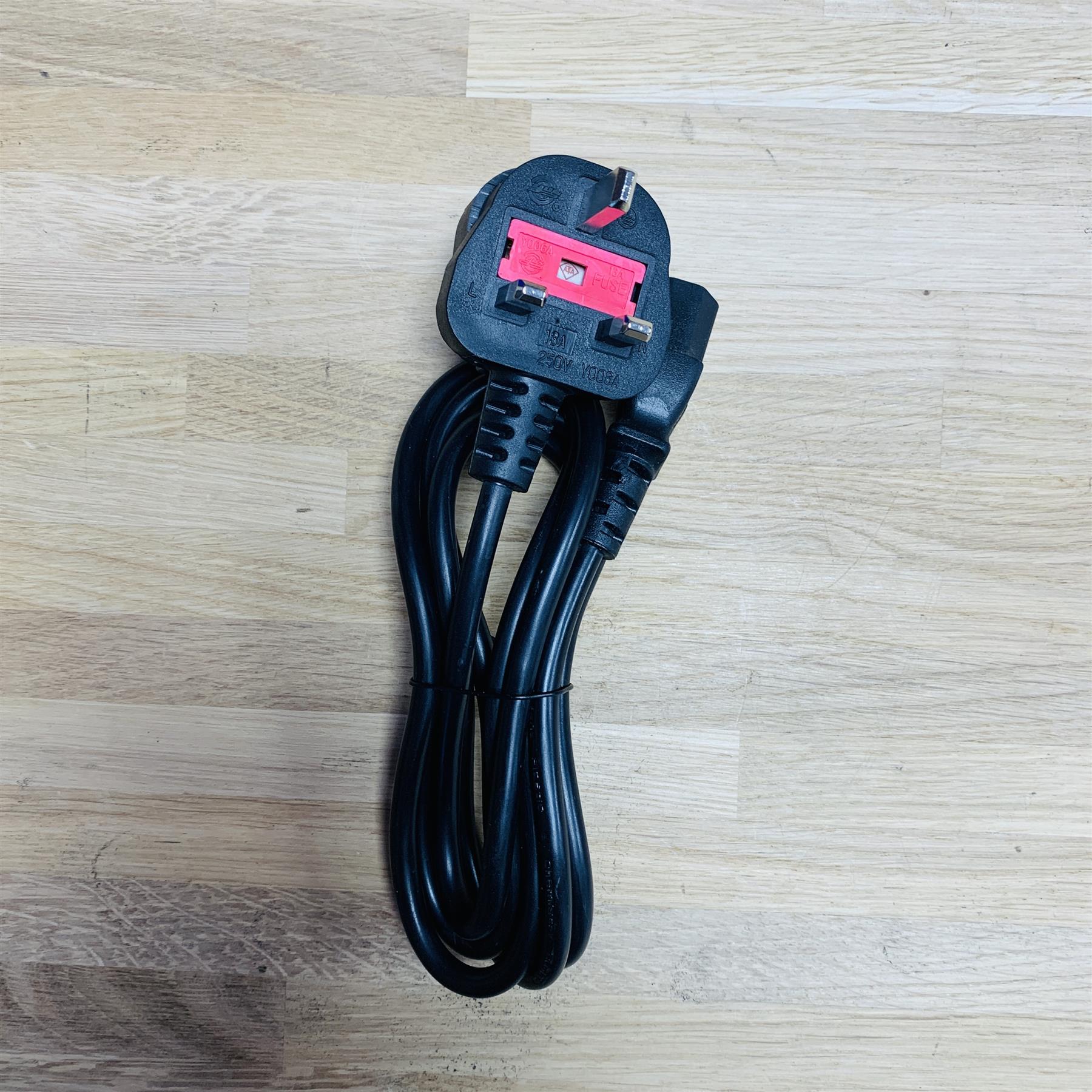

It has been professionally repackaged to ensure safe delivery and comes with a power cable and user manual.

This has been tested and is in full working order. This is being sold with our own 3 month warranty.

The cosmetic condition is good. There are some minor marks. Please see the condition in the images.

FREE national courier delivery.

Why Buy... from us?
Because all of our items go through a full inspection, get serviced (if required), PAT tested for electrical safety, deep cleaned and all come with a warranty. We are 100% committed to customer care and are always on hand pre or post-delivery for technical help and advice.

CX163 Zone Mixer

Overview

The CX163 is a zone mixer designed for use in leisure, licensed, and retail venues. With six stereo line-level inputs and one microphone input per zone, it provides flexible audio control across multiple areas. The CX163 allows for remote music level control, intuitive operation, and efficient distribution of audio signals to multiple zones, making it ideal for applications such as toilets, foyers, and other utility spaces.

Key Features

• 2 Stereo Zone Outputs + 1 Mono Utility Output:
  Both stereo zones can be configured to run in mono.
  The utility output provides a constant 0 dB level, ideal for background music in utility areas.
• Remote Music Control:
  RL-1 Remote Level Control for both stereo zones and mono operation.
  Each zone can be split into two sub-zones, each with its own remote control.
• Priority Line Input:
  Line 6 has priority over other input sources in Zone 1.
• Microphone Paging:
  Microphone access contacts for paging to all three zones.
  100Hz high-pass filter on all microphone inputs.
  Two-band microphone EQ for optimal sound quality.
• Front Panel Controls:
  Microphone level, music source selection, and volume control.

• Additional Features:
  EQ card option for further audio customisation.
  Remote music mute feature for convenient operation.



Technical Specifications

• Input Channels: 6 stereo line-level inputs
• Outputs:
  2 stereo zone outputs
  1 mono utility output
• Microphone Input:
  Paging mic for all 3 zones
  100Hz high-pass filter and 2-band EQ
• Zone Configuration:
  Each zone can operate in stereo or mono
  Sub-zone control with individual RL-1 level control
• Dimensions: Compact 1U unit for easy installation



The CX163 zone mixer is the perfect solution for creating customizable, high-quality audio experiences across various zones in any venue. Its simple operation and flexible configuration options make it an ideal choice for anyone seeking efficient and professional sound management.
