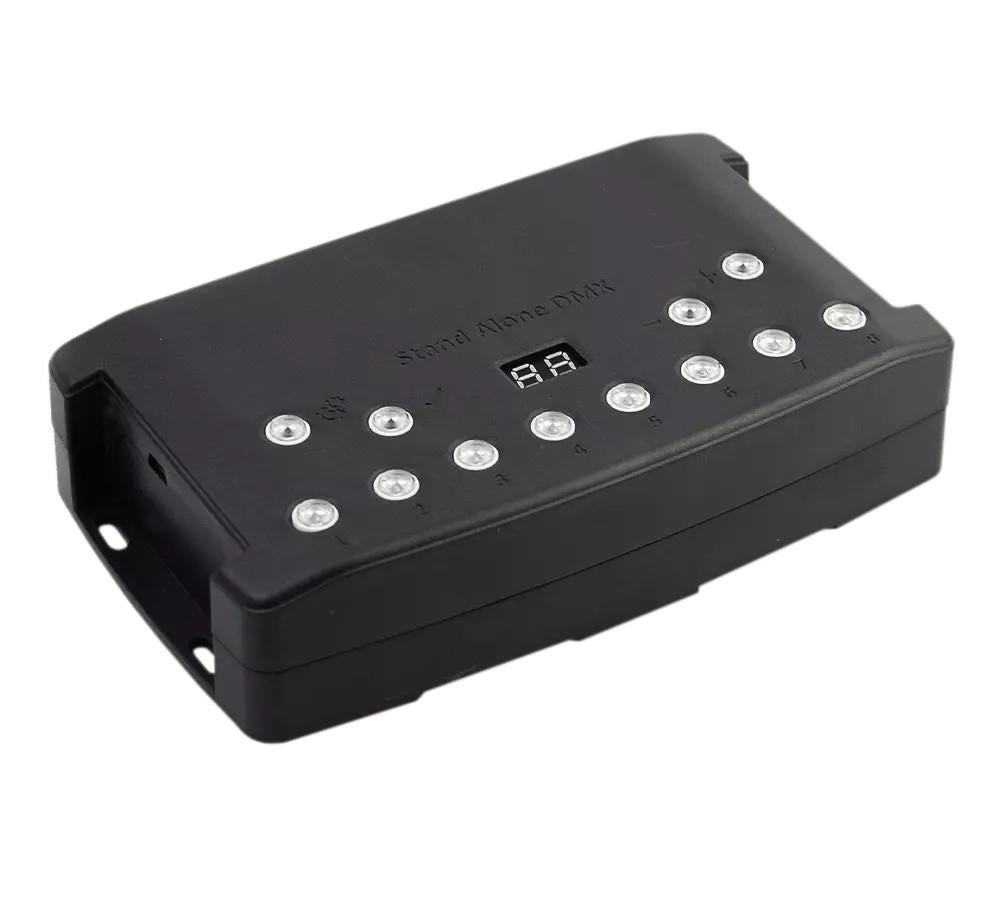

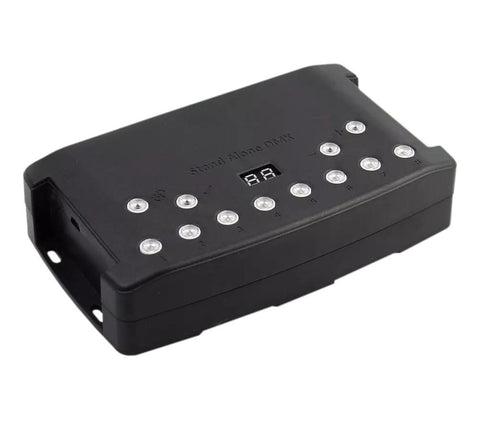

Chromateq 1024 Channel Stand-alone DMX Controller

Chromateq 1024 Channel Stand-alone DMX Controller

SKU: CHR005-BSTOCK

Item Condition: B-stock

£199.95
£199.95
Subtotal: £199.95
Ask An Expert

FREE DELIVERY

Order before 4pm for Next Working Day UK delivery

SUBSCRIBE TO GET 5% OFF ➡️

Trulli
Description
Description
x

Here we have the Chromateq 1024 Channel Stand-alone DMX Controller in Ex-Demo condition. The Ex-Demo versions will come boxed with all accessories and a 1-year warranty. Please note these items may have a few minor marks.

Thanks to its powerful Stand Alone mode, the CQSA is the definitively perfect DMX controller for all type of entertainment and architectural projects. It can play 1 to 5 Zones (scene) at a time without a computer. Hardware is compatible with PRO DMX 2, PIXXEM, LED Player, Pro DMX and Studio DMX software, so the interface is suitable for all Live applications and fixed installations.

The interface can play black a complete project without PC and the additional SD card slot gives the possibility to extend the memory capacity. The Splitter mode can make your installation more reliable and the USB interface offer more triggering possibilities.

Users can customize the interface functions and modes, it is possible to choose what mode to activate or not in Stand alone from any of the available modes (Trigger, Page, Zone, Color, Dimmer, Speed) and load the modes of your choice in memory.

Features:

  • Hardware & DMX (Software & Live)
  • PRO DMX 2, PIXXEM (DMX Channels) - 1024 (2x512) per device
  • USB-C - USB-C (5C DC, 0.1A)
  • Max Interface Connected - 12 (USB - 24 DMX)
  • Dimensions (mm / in) - H: 170 (6.69), W: 100 (3.94), D: 40 (1.57)
  • Weight / Operating Temperature / Certificatio - 0.21 Kg (0.46 lb) / -40 to +85 C° / CE, RoHS

Stand Alone:

  • DMX Out (16-bit channels) - 1024 (2x512, 2U)
  • Zone (Scene play a time, Stand Alone) - 5
  • MASTER / SLAVE Synchro (Wired) Yes, (32 max wired , up to 64 DMX out)
  • Scene options - Default start scene, Automatic Scene Recovery if off, Scene priority, Clock
  • Power - Input: 5~24V DC, 0.1A / Output: 5V DC

Memory (Stand Alone):

  • Memory Step capacity - 3K ~ 15K
  • Max Scene capacity - 5x512
  • SD Card expansion slot (for Class 10 Micro SD) - Yes (FAT format, max. 256 GB, Class 10)
  • Internal memory (No SD required) - Yes, 8 MB

Triggers (Stand Alone):

  • DMX In, DMX Trigger, DMX Merging - Yes
  • Smart Contacts (on, on/off, release, start, priority) - 7 (127 max), on 3~5V
  • Buttons (mode, valid, select x8, + and -) - Yes
  • RTC (Built in Clock and Calendar) -Yes
  • RS232 (Stand Alone Input commands) - Yes
  • Master/Slave Port - Yes, (x32 max wired)
  • Mode activation & Manual Clock setting​ - Yes
